Griplok 316 SS Male Connector, 3/16 Tube x 1/8-27 MNPT
Griplok 316 SS Male Connector, 3/16 Tube x 1/8-27 MNPT
SKU:FIT-6b3c79
High-quality Griplok 316 SS Male Connector for secure tube connections. Durable, corrosion-resistant design for precise instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok 316 SS Male Connector, 3/16 Tube x 1/8-27 MNPT
$24.99
Quantity: 1
Claim Your Seller Account
Griplok 316 SS Male Connector, 3/16 Tube x 1/8-27 MNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

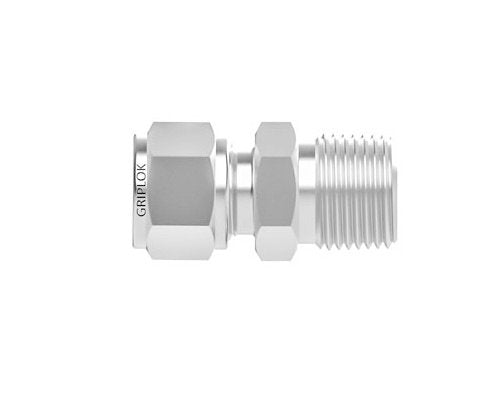

The Griplok 316 SS Male Connector is a high-quality tube fitting that ensures a secure and leak-free connection. This straight male connector features a 3/16-inch tube fitting on one end and a 1/8-27 MNPT thread on the other end, making it ideal for instrumentation applications. Crafted from durable 316 stainless steel, this connector guarantees corrosion resistance and longevity. With precise dimensions meeting industry standards, this Griplok connector is a reliable choice for both consumer and institutional buyers.

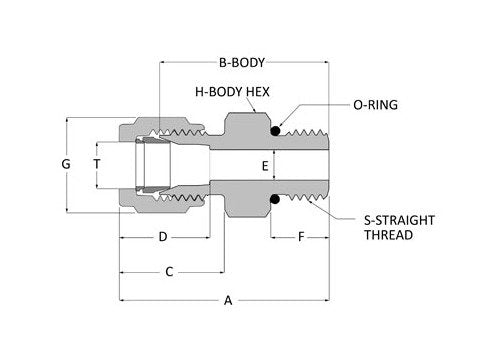

Product Specifications
Dimensions A
1.28 in
Dimensions B
0.97 in
Dimensions C
0.68 in
Dimensions D
0.59 in
Dimensions E
0.12 in
Dimensions F Minimum
0.38 in
Dimensions G
1/2 in
Dimensions H
7/16 in
Dimensions P
1/8 in
Dimensions T
3/16 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
