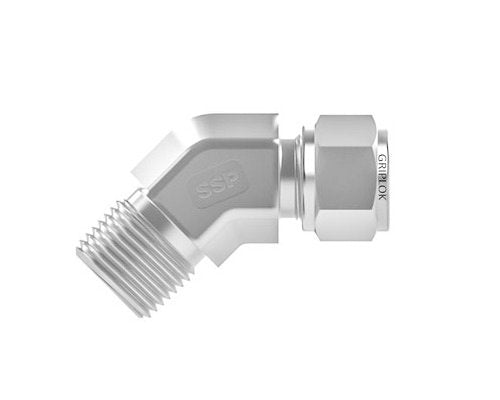

Griplok 45 Degree Male Elbow - Brass, 1/4" Tube Fitting x 1/8-27 MNPT

Griplok 45 Degree Male Elbow - Brass, 1/4" Tube Fitting x 1/8-27 MNPT

SKU:FIT-41df39

Precision-engineered Griplok 45 Degree Male Elbow designed for 1/4" Tube Fitting x 1/8-27 MNPT connections. Ideal for instrumentation tube fittings.

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

Griplok 45 Degree Male Elbow - Brass, 1/4" Tube Fitting x 1/8-27 MNPT

Griplok 45 Degree Male Elbow - Brass, 1/4" Tube Fitting x 1/8-27 MNPT

$14.99

Quantity: 1

Claim Your Seller Account

Griplok 45 Degree Male Elbow - Brass, 1/4" Tube Fitting x 1/8-27 MNPT

Griplok 45 Degree Male Elbow - Brass, 1/4" Tube Fitting x 1/8-27 MNPT

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Griplok 45 Degree Male Elbow offers a secure brass construction with a precise 1/4" Tube Fitting x 1/8-27 MNPT connection for reliable performance. Its ergonomic design ensures a tight seal, perfect for instrumentation tube fittings. With dimensions conforming to industry standards, this elbow guarantees a 45 degree angle for efficient flow control.

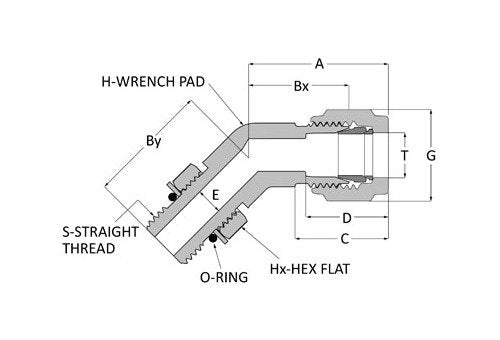

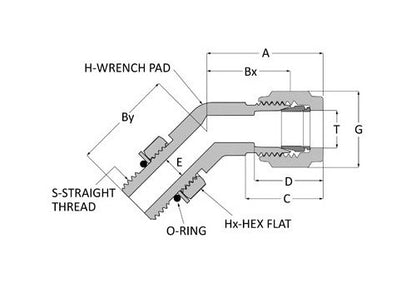

Product Specifications

Dimensions A
1.01 in
Dimensions Bx
0.68 in
Dimensions By
0.65 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.17 in
Dimensions F Minimum
0.38 in
Dimensions G
9/16 in
Dimensions H
9/16 in
Dimensions P
1/8 in
Dimensions T
1/4 in
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Elbow
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
