Griplok 45-Degree Male Elbow Tube Fitting
Griplok 45-Degree Male Elbow Tube Fitting
SKU:FIT-f7aa21
Secure brass male elbow tube fitting for 1/4-inch tube connection to 1/4-18 MNPT thread, ideal for instrumentation needs.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Griplok 45-Degree Male Elbow Tube Fitting
$12.99
Quantity: 1
Claim Your Seller Account
Griplok 45-Degree Male Elbow Tube Fitting
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok 45-Degree Male Elbow Tube Fitting provides a secure connection between a 1/4-inch tube fitting and a 1/4-18 MNPT thread fitting. Crafted from durable brass, this elbow fitting boasts precise dimensions and a corrosion-resistant design. With its Griplok brand series, it ensures a leak-free and reliable connection in instrumentation applications. The elbow shape and easy installation make it ideal for various industrial uses, meeting stringent quality standards.

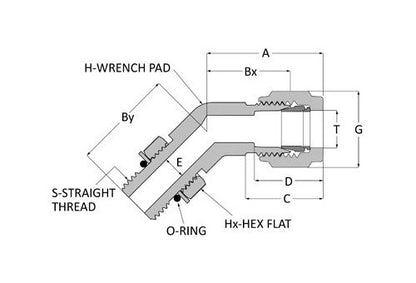

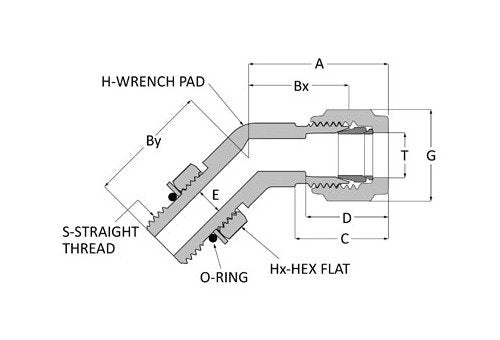

Product Specifications
Dimensions A
1.01 in
Dimensions Bx
0.68 in
Dimensions By
0.83 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F Minimum
0.56 in
Dimensions G
9/16 in
Dimensions H
9/16 in
Dimensions P
1/4 in
Dimensions T
1/4 in
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Elbow
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
