Griplok 45° Male Elbow - Alloy 400
Griplok 45° Male Elbow - Alloy 400
SKU:FIT-74461b
Precision-engineered Griplok 45° Male Elbow in Alloy 400, 1/4 Tube Fitting x 1/4-18 MNPT, for reliable and leak-free connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok 45° Male Elbow - Alloy 400
$24.99
Quantity: 1
Claim Your Seller Account
Griplok 45° Male Elbow - Alloy 400
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

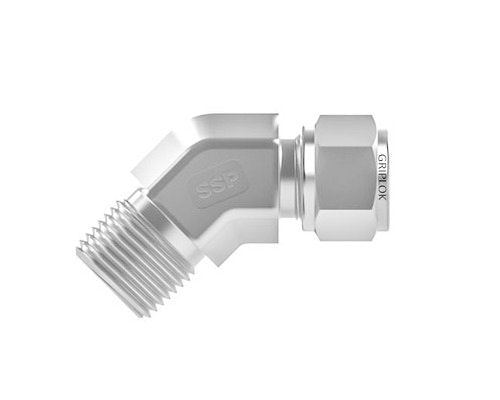

The Griplok 45° Male Elbow in Alloy 400 is a precision-engineered tube fitting designed for seamless connectivity in instrumentation systems. With a 1/4 inch Tube Fitting x 1/4-18 MNPT configuration, this male elbow ensures secure and leak-free connections. Its compact dimensions of A: 1.01 in, Bx: 0.68 in, By: 0.83 in make it ideal for confined spaces. The Griplok series guarantees durability and efficiency, meeting the highest industry standards for quality and performance.
Product Specifications

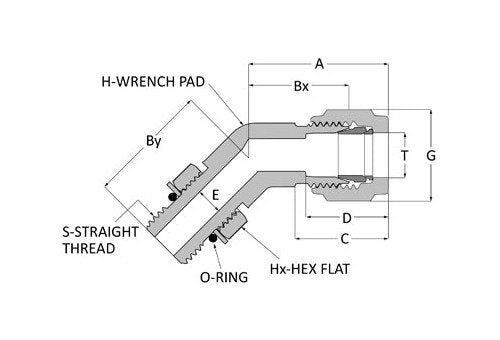

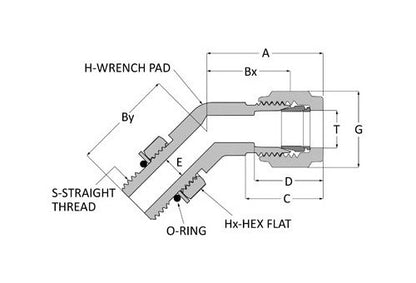

Dimensions A
1.01 in
Dimensions Bx
0.68 in
Dimensions By
0.83 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F Minimum
0.56 in
Dimensions G
9/16 in
Dimensions H
9/16 in
Dimensions P
1/4 in
Dimensions T
1/4 in
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Elbow
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
