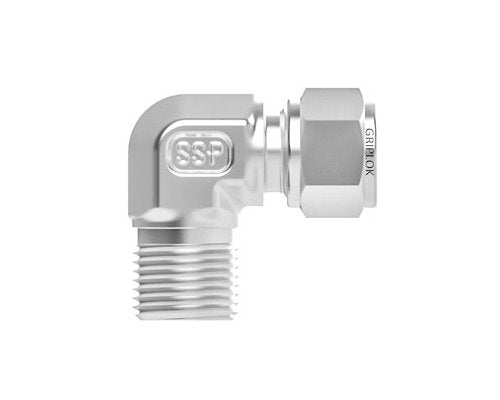

Griplok 90 Degree Male Elbow Tube Fitting
Griplok 90 Degree Male Elbow Tube Fitting
SKU:FIT-1679cb
Premium 316 SS Griplok 90° Male Elbow for secure and leak-free tube connections. Versatile and durable design.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Griplok 90 Degree Male Elbow Tube Fitting is a high-quality fitting designed for precision and durability. Constructed from 316 SS, it ensures reliable performance in demanding environments. This fitting features a Tube Fitting of 3/16 inches connecting to a 1/8-27 MNPT, making it versatile and easy to install. With dimensions meeting industry standards, this Griplok fitting guarantees a secure and leak-free connection for various applications.
Product Specifications

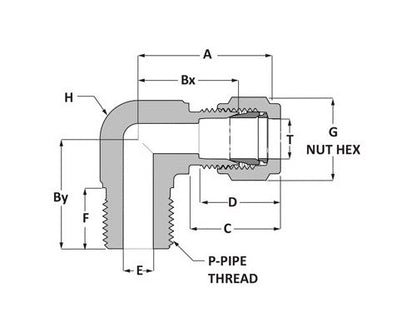

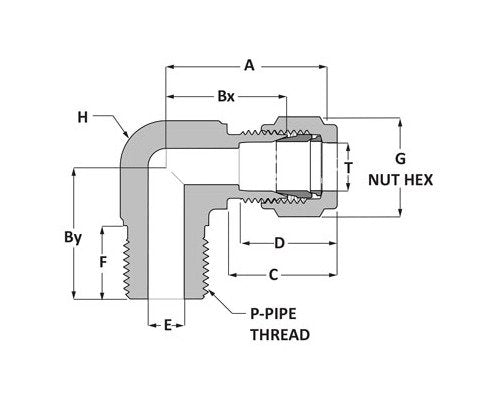

Dimensions A
1.05 in
Dimensions Bx
0.74 in
Dimensions By
0.74 in
Dimensions C
0.68 in
Dimensions D
0.59 in
Dimensions E
0.12 in
Dimensions F
0.38 in
Dimensions G
1/2 in
Dimensions H
1/2 in
Dimensions P
1/8 in
Dimensions T
3/16 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Elbow
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
