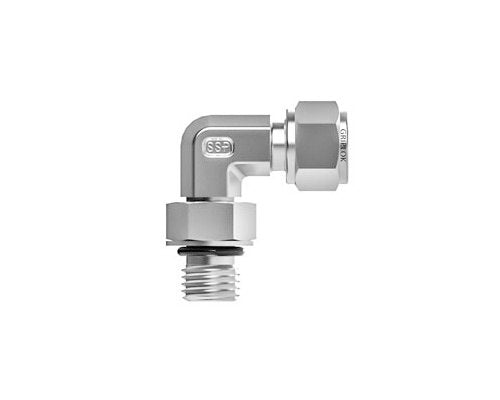

Griplok 90° Male Elbow SAE - 316 SS Fitting, 3/8 Tube x 7/16-20 SAE
Griplok 90° Male Elbow SAE - 316 SS Fitting, 3/8 Tube x 7/16-20 SAE
SKU:SSP-5ba523
Premium Griplok 90° Male Elbow SAE fitting, 316 SS construction, 3/8 Tube x 7/16-20 SAE, for secure and precise connections.
Regular price
$75.51
Regular price
Sale price
$75.51
Unit price
per
Initiate Order
Griplok 90° Male Elbow SAE - 316 SS Fitting, 3/8 Tube x 7/16-20 SAE
$75.51
Quantity: 1
Claim Your Seller Account
Griplok 90° Male Elbow SAE - 316 SS Fitting, 3/8 Tube x 7/16-20 SAE
$75.51
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok 90° Male Elbow SAE fitting is expertly crafted with durable 316 SS material, ensuring longevity and high performance in demanding environments. Featuring a 3/8-inch tube fitting on one end and a 7/16-20 male SAE connection on the other, this elbow fitting offers secure connections and precise compatibility. Its compact dimensions and robust construction make it ideal for instrumentation applications requiring reliable fluid control and tight sealing. Trust the Griplok series for exceptional quality and compliance with industry standards.
Product Specifications
Dimensions A
1.26 in
Dimensions Bx
0.97 in
Dimensions By
1.15 in
Dimensions C
0.76 in
Dimensions D
0.66 in
Dimensions E
0.28 in
Dimensions G
11/16 in
Dimensions H
9/16 in
Dimensions Hx
9/16 in
Dimensions S
7/16-20
Dimensions T
3/8 in
Specifications As568 O Ring Uniform Size Number
-904
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male SAE
Specifications End Connections
TF x Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
75.51 USD
Specifications Production Category
1
Specifications Shape
Elbow
