Griplok 90° Male Elbow SAE - Alloy 400 Tube Fitting
Griplok 90° Male Elbow SAE - Alloy 400 Tube Fitting
SKU:SSP-e1a434
Precision-made Alloy 400 90° Male Elbow SAE Tube Fitting for secure fluid system connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok 90° Male Elbow SAE - Alloy 400 Tube Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Griplok 90° Male Elbow SAE - Alloy 400 Tube Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

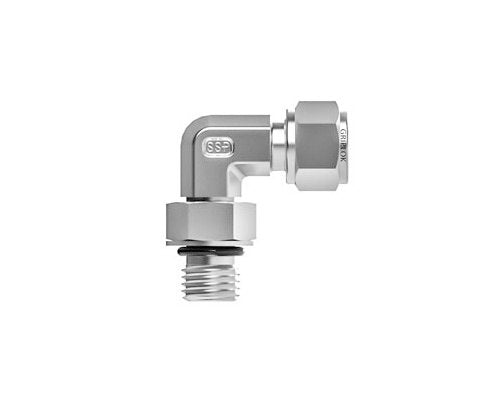

The Griplok 90° Male Elbow SAE Thread features a durable Alloy 400 body, designed for seamless tube fittings. With connections sized at 1/4 inch (TF) x 7/16-20 Male SAE, this elbow fitting ensures precision and reliability in fluid systems. The Griplok series offers exceptional quality and performance, meeting the stringent requirements of instrumentation tube fittings.

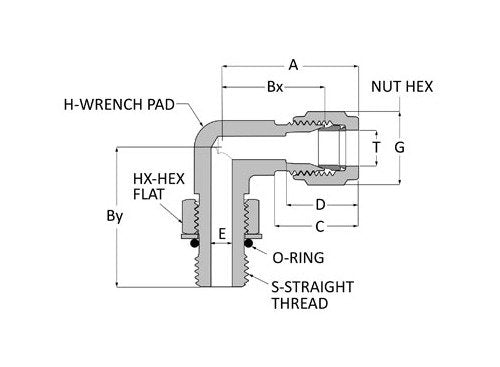

Product Specifications
Dimensions A
1.12 in
Dimensions Bx
0.83 in
Dimensions By
1.12 in
Dimensions C
0.70 in
Dimensions D
0.60 in
Dimensions E
0.19 in
Dimensions G
9/16 in
Dimensions H
1/2 in
Dimensions Hx
9/16 in
Dimensions S
7/16-20
Dimensions T
1/4 in
Specifications As568 O Ring Uniform Size Number
-904
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male SAE
Specifications End Connections
TF x Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Elbow
Category 6
Griplok® Tube Fittings
