Griplok Alloy 400 Bulkhead Tube Stub Adapter - 3/8 TF to 3/8 Tube Stub
Griplok Alloy 400 Bulkhead Tube Stub Adapter - 3/8 TF to 3/8 Tube Stub
SKU:SSP-786760
Premium Griplok Alloy 400 Bulkhead Tube Stub Adapter for secure 3/8 TF to 3/8 Tube Stub connections. Durable and precise fitting for instrumentation needs.
Regular price
$28.99
Regular price
Sale price
$28.99
Unit price
per
Initiate Order
Griplok Alloy 400 Bulkhead Tube Stub Adapter - 3/8 TF to 3/8 Tube Stub
$28.99
Quantity: 1
Claim Your Seller Account
Griplok Alloy 400 Bulkhead Tube Stub Adapter - 3/8 TF to 3/8 Tube Stub
$28.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

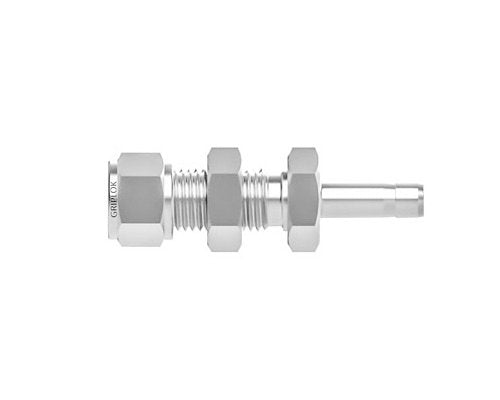

The Griplok Alloy 400 Bulkhead Tube Stub Adapter is a top-quality fitting designed for precision and durability. Crafted from Alloy 400, it offers exceptional corrosion resistance in demanding environments. This straight adapter features a 3/8 Tube Fitting x 3/8 Tube Stub connection, ideal for secure and leak-free installations. With its compact dimensions and robust construction, this Griplok adapter ensures reliable performance in instrumentation applications. Meet your stringent requirements with this Griplok Tube Fitting that excels in quality and compliance.
Ready to Grow Without Cash Flow Constraints?

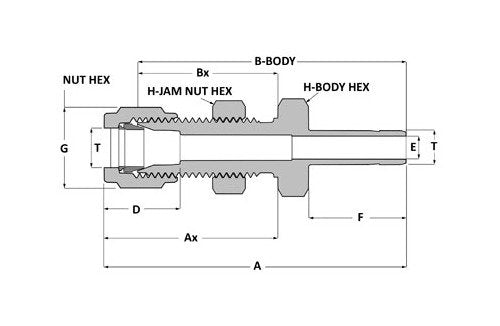

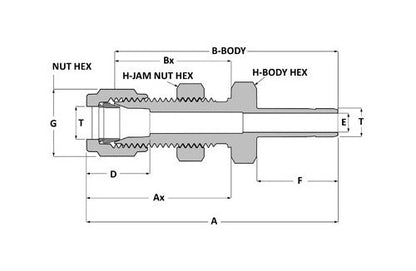

Product Specifications
Dimensions A
2.46 in
Dimensions Ax
1.45 in
Dimensions B
2.12 in
Dimensions Bx
1.16 in
Dimensions D
0.71 in
Dimensions E
0.24 in
Dimensions F
0.69 in
Dimensions G
11/16 in
Dimensions H
3/4 in
Dimensions Maximum Panel Thickness
0.44 in
Dimensions Panel Hole Drill Size
37/64 in
Dimensions T
3/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TF x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
