Griplok Alloy 400 Tube Insert with Hose Barb Connection
Griplok Alloy 400 Tube Insert with Hose Barb Connection
SKU:SSP-d33739
High-quality Griplok Alloy 400 Tube Insert with Hose Barb Connection for secure and leak-free fittings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Alloy 400 Tube Insert with Hose Barb Connection
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Alloy 400 Tube Insert with Hose Barb Connection
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Alloy 400 Tube Insert with Hose Barb Connection is a top-tier solution for your instrumentation tube fitting needs. Crafted from high-quality Alloy 400, this fitting guarantees exceptional durability and resistance to corrosive environments. With a 1/4 inch Tube Insert and a 3/16 inch Hose Barb (Hose ID), it ensures a secure and leak-free connection. The straight shape and precise dimensions of E: 0.14 in and Tube ID: 3/16 in further enhance its compatibility and performance. Suitable for temperatures ranging from -15 to 350 ºF, this fitting is a reliable choice for a wide range of applications.
Product Specifications

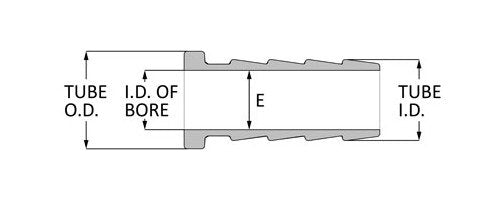

Dimensions E
0.14 in
Dimensions Tube Id
3/16 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Insert
Specifications Connection 2 Size
3/16 in
Specifications Connection 2 Type
Hose Barb (Hose ID)
Specifications End Connections
Tube Insert x Hose Barb (Hose ID)
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Temperature
-15 to 350 ºF
Category 6
Griplok® Tube Fittings
