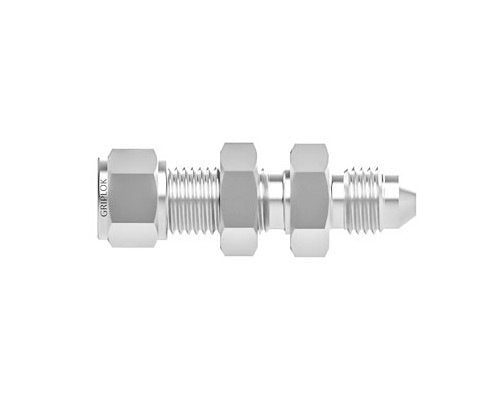

Griplok AN Bulkhead Union - 1/4 Tube Fitting x 1/4 Male AN, Brass
Griplok AN Bulkhead Union - 1/4 Tube Fitting x 1/4 Male AN, Brass
SKU:SSP-22c683
Durable Griplok AN Bulkhead Union ensures secure, leak-free connections. Brass, 1/4 in Tube Fitting x 1/4 in Male AN, ideal for instrumentation applications.
Regular price
$10.28
Regular price
Sale price
$10.28
Unit price
per
Initiate Order
Griplok AN Bulkhead Union - 1/4 Tube Fitting x 1/4 Male AN, Brass
$10.28
Quantity: 1
Claim Your Seller Account
Griplok AN Bulkhead Union - 1/4 Tube Fitting x 1/4 Male AN, Brass
$10.28
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok AN Bulkhead Union is expertly crafted from durable brass, ensuring reliable performance in demanding environments. This straight bulkhead fitting features a 1/4 in Tube Fitting x 1/4 in Male AN connection, ideal for instrumentation applications. With dimensions meeting industry standards and a robust build, this union provides secure connections and leak-free operation. Trust the Griplok series for quality, precision, and compliance with institutional procurement requirements.
Ready to Grow Without Cash Flow Constraints?

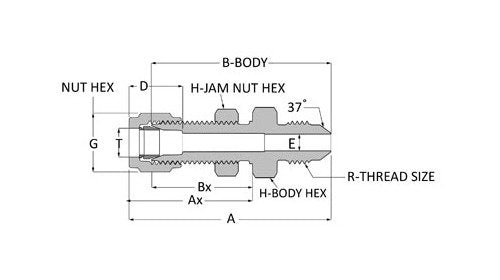

Product Specifications
Dimensions A
2.16 in
Dimensions Ax
1.32 in
Dimensions B
1.83 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.17 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions R
7/16-20 UNJF-3
Dimensions T
1/4 in
Specifications An Tube Flare Size
1/4
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
10.28 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
