Griplok AN Bulkhead Union - 1/4 Tubing x 1/4 Male AN, 316 SS
Griplok AN Bulkhead Union - 1/4 Tubing x 1/4 Male AN, 316 SS
SKU:SSP-11c9de
Premium Griplok AN Bulkhead Union - 1/4 Tubing x 1/4 Male AN, 316 SS for reliable instrumentation connections.
Regular price
$24.20
Regular price
Sale price
$24.20
Unit price
per
Initiate Order
Griplok AN Bulkhead Union - 1/4 Tubing x 1/4 Male AN, 316 SS
$24.20
Quantity: 1
Claim Your Seller Account
Griplok AN Bulkhead Union - 1/4 Tubing x 1/4 Male AN, 316 SS
$24.20
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

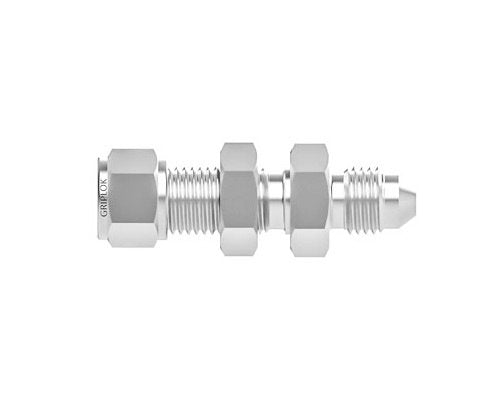

The Griplok AN Bulkhead Union is expertly designed for seamless connection in instrumentation applications. Crafted from durable 316 stainless steel, this fitting ensures exceptional corrosion resistance and longevity. With 1/4 inch tube fitting and 1/4 inch Male AN connections, it offers a secure and leak-free joint. Featuring a bulkhead specialty and straight shape, it guarantees precise alignment and optimal performance. The Griplok series ensures easy installation and maintenance, making it a reliable choice for industrial and institutional setups.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

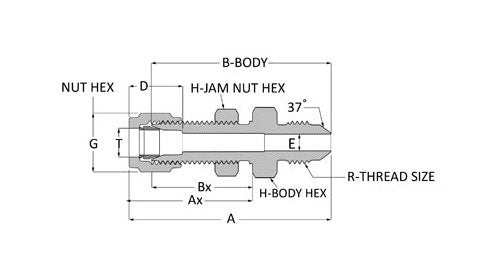

Dimensions A
2.16 in
Dimensions Ax
1.32 in
Dimensions B
1.83 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.17 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions R
7/16-20 UNJF-3
Dimensions T
1/4 in
Specifications An Tube Flare Size
1/4
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
24.20 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
