Griplok AN Bulkhead Union - 1in 316 SS - Instrumentation Tube Fitting
Griplok AN Bulkhead Union - 1in 316 SS - Instrumentation Tube Fitting
SKU:SSP-f5cf14
High-quality Griplok AN Bulkhead Union for secure and precise 1in Tube Fitting x 1in Male AN stainless steel connections.
Regular price
$195.90
Regular price
Sale price
$195.90
Unit price
per
Initiate Order
Griplok AN Bulkhead Union - 1in 316 SS - Instrumentation Tube Fitting
$195.90
Quantity: 1
Claim Your Seller Account
Griplok AN Bulkhead Union - 1in 316 SS - Instrumentation Tube Fitting
$195.90
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

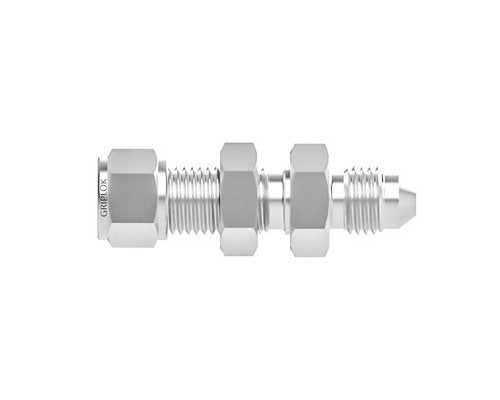

The Griplok AN Bulkhead Union is crafted from high-grade 316 SS, ensuring durability and corrosion resistance for demanding applications. This fitting features a 1-inch Tube Fitting on one end and a 1-inch Male AN connection on the other, meeting stringent industry standards. Designed for precise installations, its straight shape and bulkhead specialty make it ideal for secure connections. With dimensions A: 3.72 in, Bx: 1.78 in, D: 1.31 in, and more, this unit guarantees a perfect fit on panels up to 0.75 inches thick.
Ready to Grow Without Cash Flow Constraints?

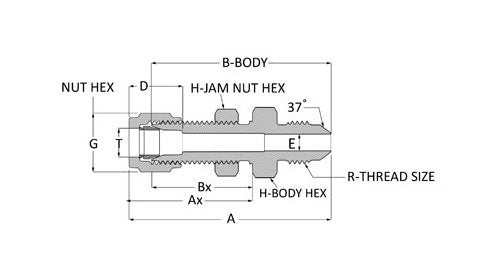

Product Specifications
Dimensions A
3.72 in
Dimensions Ax
2.26 in
Dimensions B
3.16 in
Dimensions Bx
1.78 in
Dimensions D
1.31 in
Dimensions E
0.84 in
Dimensions G
1 1/2 in
Dimensions H
1 5/8 in
Dimensions Maximum Panel Thickness
0.75 in
Dimensions Panel Hole Drill Size
1 21/64 in
Dimensions R
1 5/16-12 UNJ-3
Dimensions T
1 in
Specifications An Tube Flare Size
1
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
195.90 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
