Griplok AN Bulkhead Union - Alloy 400, 1/4 Tube x 1/4 Male AN
Griplok AN Bulkhead Union - Alloy 400, 1/4 Tube x 1/4 Male AN
SKU:SSP-39c78d
Premium quality Griplok AN Bulkhead Union, Alloy 400, 1/4 Tube x 1/4 Male AN, precise dimensions, ideal for instrumentation fittings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok AN Bulkhead Union - Alloy 400, 1/4 Tube x 1/4 Male AN
$24.99
Quantity: 1
Claim Your Seller Account
Griplok AN Bulkhead Union - Alloy 400, 1/4 Tube x 1/4 Male AN
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

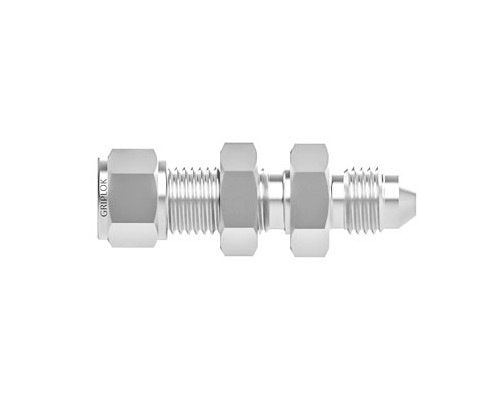

The Griplok AN Bulkhead Union is a high-quality fitting designed for seamless connection between 1/4-inch tubing and 1/4-inch Male AN ports. Crafted from durable Alloy 400, this straight-shaped fitting ensures a secure and leak-free connection. With precise dimensions and a specialty Bulkhead design, it guarantees reliable performance. Ideal for instrumentation tube fittings, the Griplok series offers unmatched quality and compliance with industry standards, meeting the rigorous requirements of institutional and government procurement.

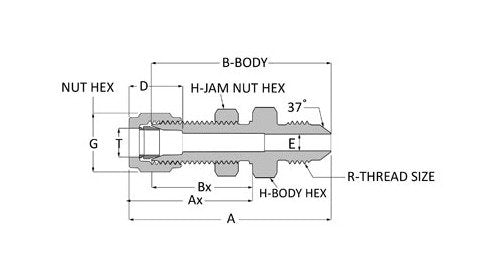

Product Specifications
Dimensions A
2.16 in
Dimensions Ax
1.32 in
Dimensions B
1.83 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.17 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions R
7/16-20 UNJF-3
Dimensions T
1/4 in
Specifications An Tube Flare Size
1/4
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
