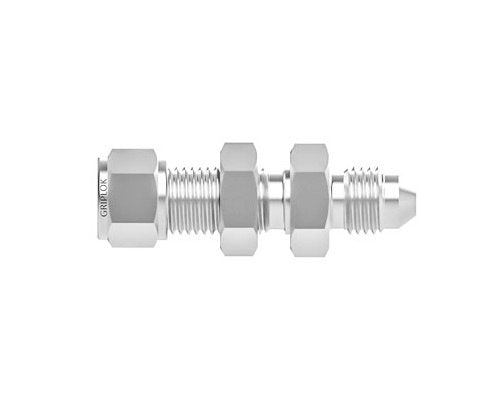

Griplok AN Bulkhead Union - Alloy 400, 3/4 TF x Male AN - Straight Shape
Griplok AN Bulkhead Union - Alloy 400, 3/4 TF x Male AN - Straight Shape
SKU:SSP-e54c6d
Reliable Griplok Alloy 400 Bulkhead Union for secure 3/4 TF x Male AN connections, ideal for industrial use.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Griplok AN Bulkhead Union - Alloy 400, 3/4 TF x Male AN - Straight Shape
$45.99
Quantity: 1
Claim Your Seller Account
Griplok AN Bulkhead Union - Alloy 400, 3/4 TF x Male AN - Straight Shape
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok AN Bulkhead Union is precision-engineered for seamless tube connections in industrial settings. Crafted from durable Alloy 400, this fitting ensures reliable performance and leak-free operation. Its 3/4 TF x Male AN connections provide a secure link suitable for critical applications, maintaining integrity under high pressures. With compliance to industry standards, including specific Federal/DoD procurement guidelines, GSA requirements, and FAR compliance factors, this Griplok Union guarantees quality and reliability in institutional procurement environments.
Ready to Grow Without Cash Flow Constraints?

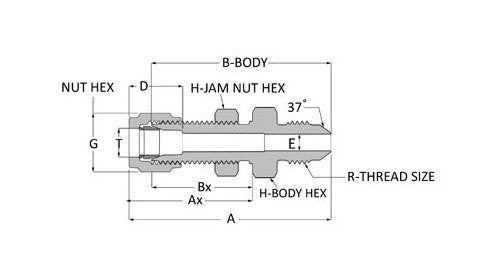

Product Specifications
Dimensions A
3.15 in
Dimensions Ax
1.87 in
Dimensions B
2.71 in
Dimensions Bx
1.47 in
Dimensions D
1.00 in
Dimensions E
0.61 in
Dimensions G
1 1/8 in
Dimensions H
1 3/16 in
Dimensions Maximum Panel Thickness
0.66 in
Dimensions Panel Hole Drill Size
1 1/64 in
Dimensions R
1 1/16-12 UNJ-3
Dimensions T
3/4 in
Specifications An Tube Flare Size
3/4
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
