Griplok AN Bulkhead Union - Brass, 3/4 TF x 3/4 Male AN
Griplok AN Bulkhead Union - Brass, 3/4 TF x 3/4 Male AN
SKU:SSP-bcb649
Durable brass Griplok Bulkhead Union for 3/4 TF x 3/4 Male AN connections. Secure, precise fitting for instrumentation needs.
Regular price
$71.97
Regular price
Sale price
$71.97
Unit price
per
Initiate Order
Griplok AN Bulkhead Union - Brass, 3/4 TF x 3/4 Male AN
$71.97
Quantity: 1
Claim Your Seller Account
Griplok AN Bulkhead Union - Brass, 3/4 TF x 3/4 Male AN
$71.97
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok AN Bulkhead Union features a durable brass construction, connecting 3/4-inch tube fittings to 3/4-inch Male AN with precision. Its straight shape and bulkhead specialty ensure secure connections. With dimensions meeting industry standards, including a panel thickness of 0.66 inches, this fitting is ideal for instrumentation applications.

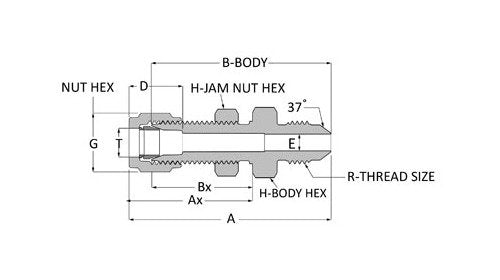

Product Specifications
Dimensions A
3.15 in
Dimensions Ax
1.87 in
Dimensions B
2.71 in
Dimensions Bx
1.47 in
Dimensions D
1.00 in
Dimensions E
0.61 in
Dimensions G
1 1/8 in
Dimensions H
1 3/16 in
Dimensions Maximum Panel Thickness
0.66 in
Dimensions Panel Hole Drill Size
1 1/64 in
Dimensions R
1 1/16-12 UNJ-3
Dimensions T
3/4 in
Specifications An Tube Flare Size
3/4
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
71.97 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
