Griplok Brass Bulkhead Female Connector - 1/2 Tube x 1/2-14 FNPT
Griplok Brass Bulkhead Female Connector - 1/2 Tube x 1/2-14 FNPT
SKU:SSP-07f770
High-quality Griplok Brass Bulkhead Female Connector for secure instrumentation tube connections, 1/2 x 1/2-14 FNPT.
Regular price
$20.97
Regular price
Sale price
$20.97
Unit price
per
Initiate Order
Griplok Brass Bulkhead Female Connector - 1/2 Tube x 1/2-14 FNPT
$20.97
Quantity: 1
Claim Your Seller Account
Griplok Brass Bulkhead Female Connector - 1/2 Tube x 1/2-14 FNPT
$20.97
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Brass Bulkhead Female Connector is meticulously designed for secure and leak-free connections in instrumentation applications. Crafted from high-quality brass, this connector ensures durability and reliability. With a 1/2 inch Tube Fitting and 1/2-14 FNPT size, it offers seamless connectivity. The Bulkhead design adds stability, making it ideal for demanding industrial environments. Meeting stringent industry standards, this connector guarantees precision and performance.
Product Specifications

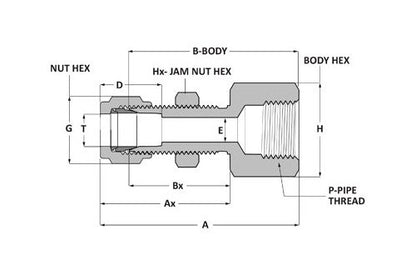

Dimensions A
2.69 in
Dimensions Ax
1.65 in
Dimensions B
2.22 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions G
7/8 in
Dimensions H
1 1/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/2 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
20.97 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
