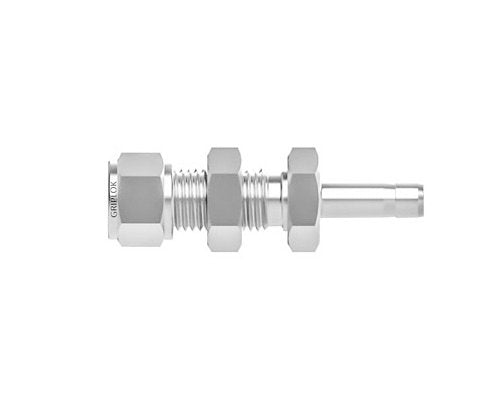

Griplok Brass Bulkhead Tube Stub Adapter - 1/2 in TF x 1/2 in Tube Stub

Griplok Brass Bulkhead Tube Stub Adapter - 1/2 in TF x 1/2 in Tube Stub

SSP-63cd32

Premium Griplok Brass Bulkhead Tube Stub Adapter for secure 1/2 in connections in instrumentation applications.

$24.99
$24.99
Sale

Initiate Order

Griplok Brass Bulkhead Tube Stub Adapter - 1/2 in TF x 1/2 in Tube Stub

Griplok Brass Bulkhead Tube Stub Adapter - 1/2 in TF x 1/2 in Tube Stub

$24.99

Quantity: 1

Claim Your Seller Account

Griplok Brass Bulkhead Tube Stub Adapter - 1/2 in TF x 1/2 in Tube Stub

Griplok Brass Bulkhead Tube Stub Adapter - 1/2 in TF x 1/2 in Tube Stub

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Griplok Brass Bulkhead Tube Stub Adapter is a high-quality brass fitting designed for seamless connections in instrumentation applications. This adapter features a 1/2 inch Tube Fitting on one end and a 1/2 inch Tube Stub on the other, ensuring a secure and reliable fit. With a straight shape and bulkhead specialty, it is ideal for various industrial settings. The dimensions and panel thickness make installation easy and efficient. Compliant with federal procurement standards and industry-specific certifications, this adapter guarantees performance and durability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

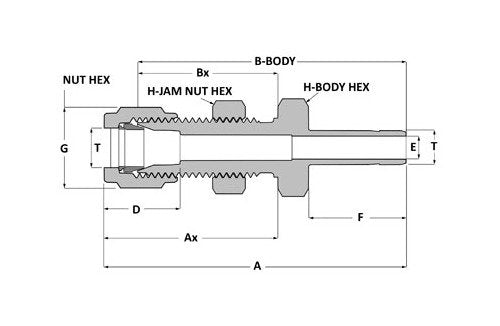

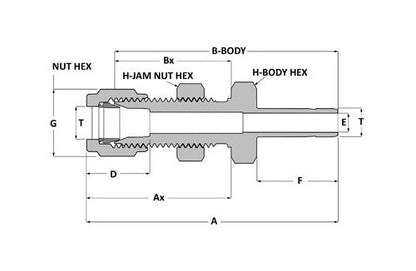

Product Specifications

Dimensions A
2.94 in
Dimensions Ax
1.65 in
Dimensions B
2.47 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.33 in
Dimensions F
0.91 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TF x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
