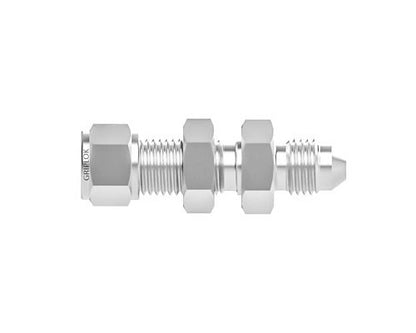

Griplok Brass Bulkhead Union - 1" Tube Fitting x 1" Male AN
Griplok Brass Bulkhead Union - 1" Tube Fitting x 1" Male AN
SKU:SSP-5668fe
High-quality Griplok Brass Bulkhead Union for secure 1" Tube Fitting x 1" Male AN connections. Durable brass construction for reliable performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Griplok Brass Bulkhead Union - 1" Tube Fitting x 1" Male AN
$39.99
Quantity: 1
Claim Your Seller Account
Griplok Brass Bulkhead Union - 1" Tube Fitting x 1" Male AN
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Brass Bulkhead Union is a premium quality fitting designed for precise instrumentation applications. Constructed from durable brass, it ensures reliable connections. Featuring a 1" Tube Fitting x 1" Male AN configuration, this union offers superior performance and easy installation. With dimensions meeting industry standards, including a maximum panel thickness of 0.75 inches, it is ideal for a wide range of institutional and government procurement needs.

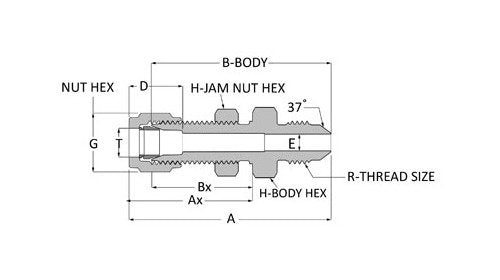

Product Specifications
Dimensions A
3.72 in
Dimensions Ax
2.26 in
Dimensions B
3.16 in
Dimensions Bx
1.78 in
Dimensions D
1.31 in
Dimensions E
0.84 in
Dimensions G
1 1/2 in
Dimensions H
1 5/8 in
Dimensions Maximum Panel Thickness
0.75 in
Dimensions Panel Hole Drill Size
1 21/64 in
Dimensions R
1 5/16-12 UNJ-3
Dimensions T
1 in
Specifications An Tube Flare Size
1
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
