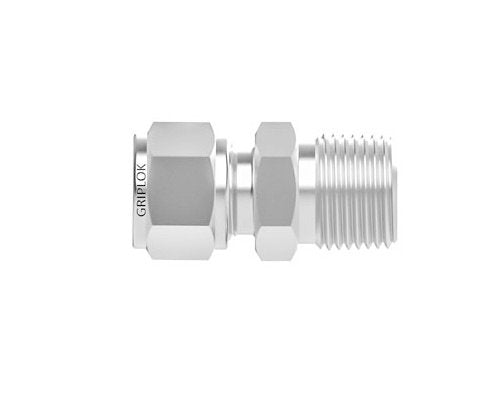

Griplok Brass Male Connector - 1/16 Tube Fitting x 1/4-18 MNPT
Griplok Brass Male Connector - 1/16 Tube Fitting x 1/4-18 MNPT
SKU:FIT-99fcc2
Durable Griplok Brass Male Connector for precise instrumentation systems. 1/16 Tube Fitting x 1/4-18 MNPT.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Griplok Brass Male Connector - 1/16 Tube Fitting x 1/4-18 MNPT
$14.99
Quantity: 1
Claim Your Seller Account
Griplok Brass Male Connector - 1/16 Tube Fitting x 1/4-18 MNPT
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Brass Male Connector boasts precise engineering with Brass construction, ensuring durability and reliability. Featuring a 1/16-inch Tube Fitting connected to a 1/4-18 MNPT, this straight Connector offers seamless integration in instrumentation systems. With dimensions meeting industry standards, including a 1/4-inch P size and 1/16-inch T size, this Connector guarantees a secure fit for optimal performance. Trust the Griplok series for high-quality fittings that excel in industrial applications.

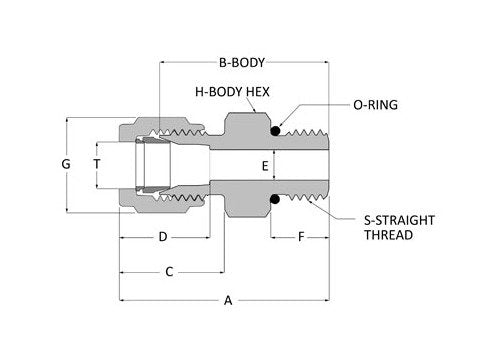

Product Specifications
Dimensions A
1.28 in
Dimensions B
1.07 in
Dimensions C
0.49 in
Dimensions D
0.40 in
Dimensions E
0.05 in
Dimensions F Minimum
0.56 in
Dimensions G
5/16 in
Dimensions H
9/16 in
Dimensions P
1/4 in
Dimensions T
1/16 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
