Griplok BSPP Male Connector 1/8 Tube Fitting x 1/8 Male BSPP
Griplok BSPP Male Connector 1/8 Tube Fitting x 1/8 Male BSPP
SKU:FIT-c6b265
High-performance 316 SS Griplok BSPP Male Connector for secure and precise tube fittings. Ideal for instrumentation applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok BSPP Male Connector 1/8 Tube Fitting x 1/8 Male BSPP
$29.99
Quantity: 1
Claim Your Seller Account
Griplok BSPP Male Connector 1/8 Tube Fitting x 1/8 Male BSPP
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok BSPP Male Connector features a durable 316 SS construction, ensuring high-quality performance. With a 1/8 Tube Fitting x 1/8 Male BSPP configuration, this connector offers a secure and precise connection. Designed for instrumentation applications, it boasts precise dimensions and a straight shape, meeting industry standards for reliability.

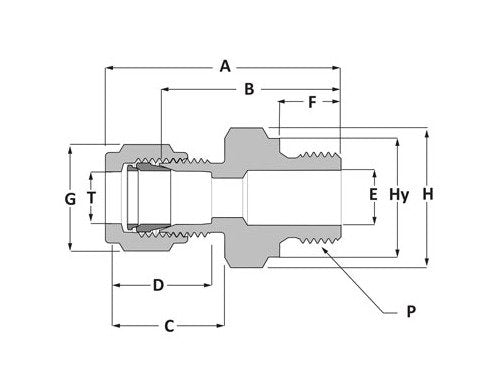

Product Specifications
Dimensions A
1.18 in
Dimensions B Body
0.92 in
Dimensions C
0.60 in
Dimensions D
0.50 in
Dimensions E
0.09 in
Dimensions F
0.28 in
Dimensions G
7/16 in
Dimensions H
9/16 in
Dimensions Hy
0.54 in
Dimensions P
1/8 in
Dimensions T
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Male BSPP
Specifications End Connections
TF x Male BSPP
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
3
Specifications Shape
Straight
Category 6
Tube Fitting to BSP Thread Fitting - Griplok
