Griplok BSPP Male Connector - 1/8 Tube x 1/8 Male BSPP
Griplok BSPP Male Connector - 1/8 Tube x 1/8 Male BSPP
SKU:FIT-ff39dc
Secure your instrumentation setup with Griplok BSPP Male Connector - Alloy 400, 1/8 Tube x 1/8 Male BSPP. Reliable and precise for your needs.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok BSPP Male Connector - 1/8 Tube x 1/8 Male BSPP
$24.99
Quantity: 1
Claim Your Seller Account
Griplok BSPP Male Connector - 1/8 Tube x 1/8 Male BSPP
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

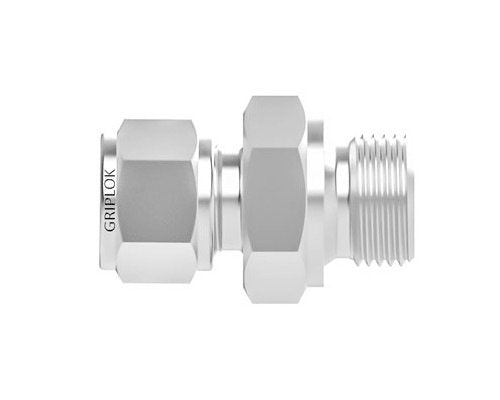

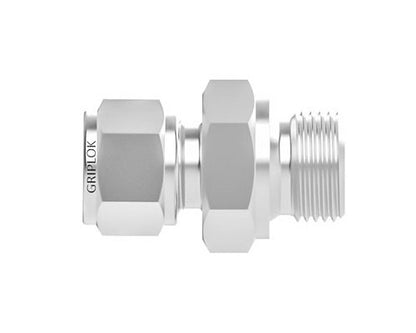

The Griplok BSPP Male Connector is designed for precision and durability. Made from Alloy 400, this straight connector ensures a secure and leak-free connection between a 1/8-inch tube and a 1/8-inch Male BSPP. With dimensions meeting industry standards, this connector offers reliability and performance in instrumentation applications. Trust Griplok for quality tube fittings that exceed expectations.

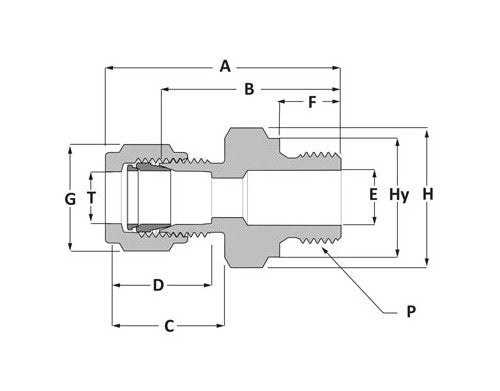

Product Specifications
Dimensions A
1.18 in
Dimensions B Body
0.92 in
Dimensions C
0.60 in
Dimensions D
0.50 in
Dimensions E
0.09 in
Dimensions F
0.28 in
Dimensions G
7/16 in
Dimensions H
9/16 in
Dimensions Hy
0.54 in
Dimensions P
1/8 in
Dimensions T
1/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Male BSPP
Specifications End Connections
TF x Male BSPP
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Tube Fitting to BSP Thread Fitting - Griplok
