Griplok BSPP Male Connector - 1/8 Tube x 3/8 Male BSPP, 316 SS
Griplok BSPP Male Connector - 1/8 Tube x 3/8 Male BSPP, 316 SS
SKU:FIT-bf0dcd
High-quality Griplok BSPP Male Connector for precise 1/8 Tube to 3/8 Male BSPP connection.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Griplok BSPP Male Connector - 1/8 Tube x 3/8 Male BSPP, 316 SS
$32.99
Quantity: 1
Claim Your Seller Account
Griplok BSPP Male Connector - 1/8 Tube x 3/8 Male BSPP, 316 SS
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

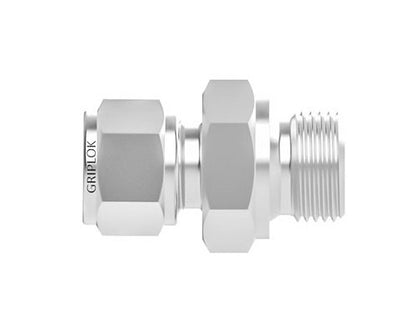

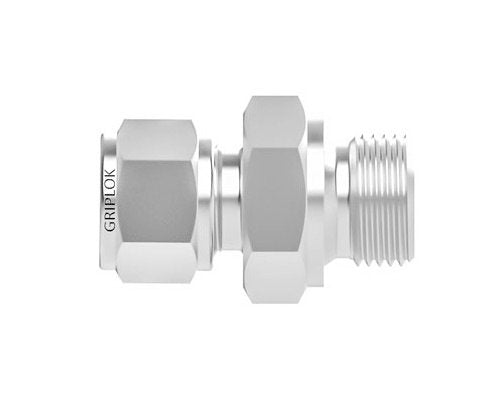

The Griplok BSPP Male Connector is a precision-engineered tube fitting designed for seamless connection between a 1/8 inch tube fitting and 3/8 inch Male BSPP port. Crafted from high-grade 316 SS material, it ensures durability and resistance to corrosion. The straight shape and precise dimensions make installation easy and secure. Ideal for instrumentation applications requiring reliable fluid connections, this connector offers top-notch performance and longevity.

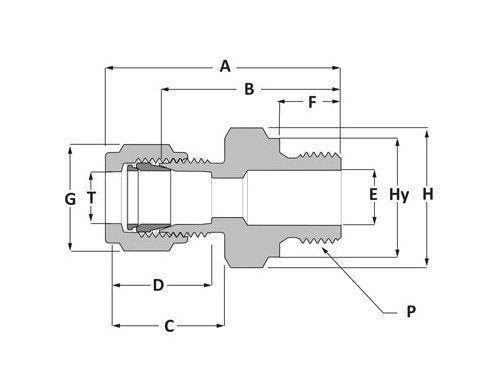

Product Specifications
Dimensions A
1.43 in
Dimensions B Body
1.17 in
Dimensions C
0.60 in
Dimensions D
0.50 in
Dimensions E
0.09 in
Dimensions F
0.44 in
Dimensions G
7/16 in
Dimensions H
7/8 in
Dimensions Hy
0.86 in
Dimensions P
3/8 in
Dimensions T
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
Male BSPP
Specifications End Connections
TF x Male BSPP
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
3
Specifications Shape
Straight
Category 6
Tube Fitting to BSP Thread Fitting - Griplok
