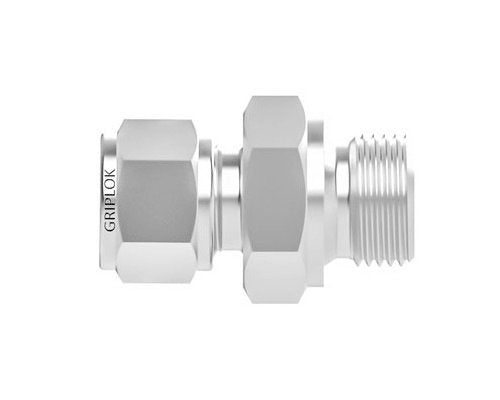

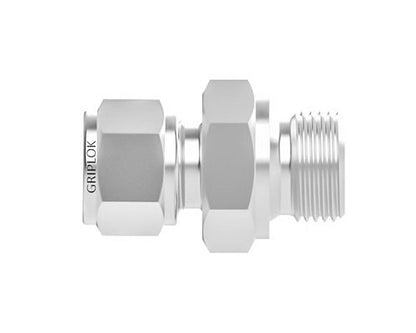

Griplok BSPP Male Connector - 3/4 Tube x 3/4 Male BSPP - 316 SS
Griplok BSPP Male Connector - 3/4 Tube x 3/4 Male BSPP - 316 SS
SKU:FIT-db20a4
Reliable Griplok BSPP Male Connector - 316 SS - 3/4 Tube x 3/4 Male BSPP. Quick, secure, and precise connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok BSPP Male Connector - 3/4 Tube x 3/4 Male BSPP - 316 SS
$24.99
Quantity: 1
Claim Your Seller Account
Griplok BSPP Male Connector - 3/4 Tube x 3/4 Male BSPP - 316 SS
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

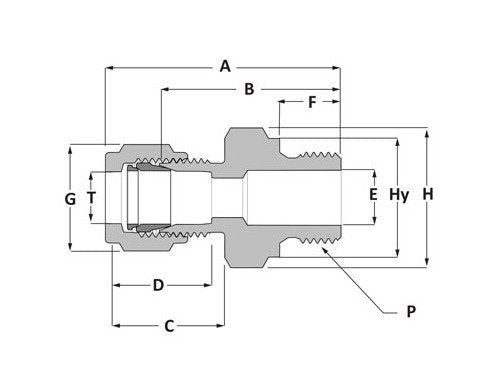

The Griplok BSPP Male Connector features a durable 316 SS construction, ensuring reliability and longevity. With a Tube Fitting size of 3/4 inch and Male BSPP size of 3/4 inch, this connector is designed for precision and secure connections. Its straight shape and Griplok series make installation quick and easy. The dimensions of A: 2.08 in, C: 0.86 in, D: 0.96 in, E: 0.62 in, F: 0.62 in, G: 1 1/8 in, H: 1 5/16 in, P: 3/4 in, T: 3/4 in, B Body: 1.68 in, and Hy: 1.26 in provide exact measurements for seamless integration into your systems.
Product Specifications
Dimensions A
2.08 in
Dimensions B Body
1.68 in
Dimensions C
0.86 in
Dimensions D
0.96 in
Dimensions E
0.62 in
Dimensions F
0.62 in
Dimensions G
1 1/8 in
Dimensions H
1 5/16 in
Dimensions Hy
1.26 in
Dimensions P
3/4 in
Dimensions T
3/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Male BSPP
Specifications End Connections
TF x Male BSPP
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
3
Specifications Shape
Straight
Category 6
Tube Fitting to BSP Thread Fitting - Griplok
