Griplok BSPP Male Connector - 316 SS, 1/8 Tube x 1/4 Male BSPP
Griplok BSPP Male Connector - 316 SS, 1/8 Tube x 1/4 Male BSPP
SKU:FIT-6ac4bc
High-grade 316 SS Griplok BSPP Male Connector - 1/8 Tube x 1/4 Male BSPP, ideal for instrumentation use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok BSPP Male Connector - 316 SS, 1/8 Tube x 1/4 Male BSPP
$24.99
Quantity: 1
Claim Your Seller Account
Griplok BSPP Male Connector - 316 SS, 1/8 Tube x 1/4 Male BSPP
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

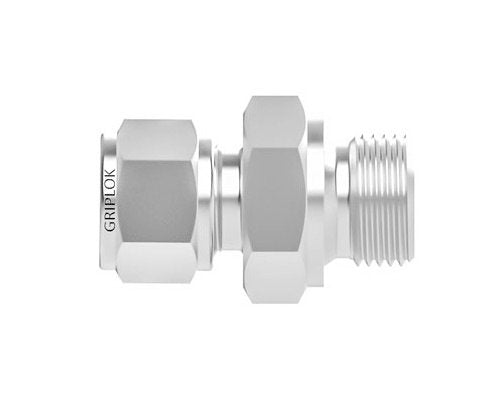

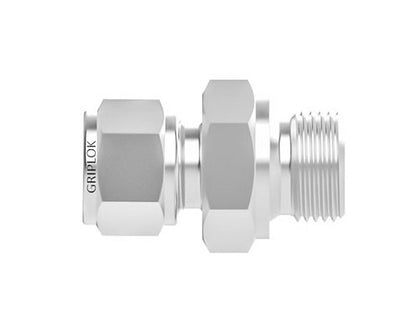

The Griplok BSPP Male Connector is engineered from high-grade 316 SS for durability and corrosion resistance. This connector features a precise 1/8 inch tube fitting and a 1/4 inch male BSPP connection, ensuring a secure and leak-free joint. With a straight shape design and compact dimensions, it offers easy installation and reliable performance in instrumentation applications. Compliant with industry standards, this connector is the ideal choice for both consumer and institutional buyers seeking quality and precision.
Product Specifications

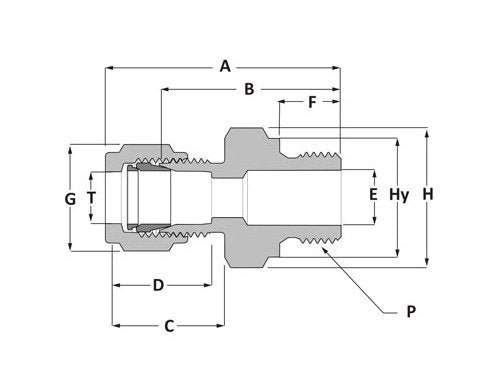

Dimensions A
1.39 in
Dimensions B Body
1.13 in
Dimensions C
0.60 in
Dimensions D
0.50 in
Dimensions E
0.09 in
Dimensions F
0.44 in
Dimensions G
7/16 in
Dimensions H
3/4 in
Dimensions Hy
0.71 in
Dimensions P
1/4 in
Dimensions T
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male BSPP
Specifications End Connections
TF x Male BSPP
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
3
Specifications Shape
Straight
Category 6
Tube Fitting to BSP Thread Fitting - Griplok
