Griplok BSPP Male Connector - Stainless Steel 316, 1/4" Tube x 1/4" Male BSPP
Griplok BSPP Male Connector - Stainless Steel 316, 1/4" Tube x 1/4" Male BSPP
SKU:FIT-277eac
High-quality Griplok BSPP Male Connector - 316 SS, 1/4" Tube x 1/4" Male BSPP for secure instrumentation setups.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok BSPP Male Connector - Stainless Steel 316, 1/4" Tube x 1/4" Male BSPP
$24.99
Quantity: 1
Claim Your Seller Account
Griplok BSPP Male Connector - Stainless Steel 316, 1/4" Tube x 1/4" Male BSPP
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

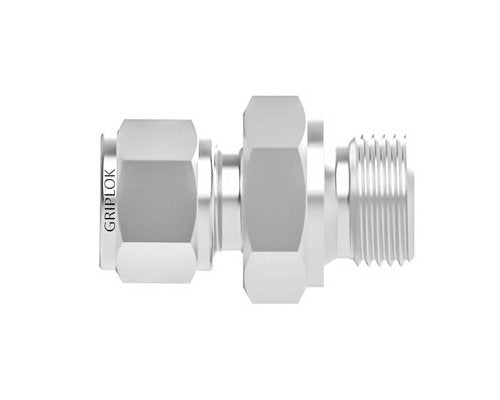

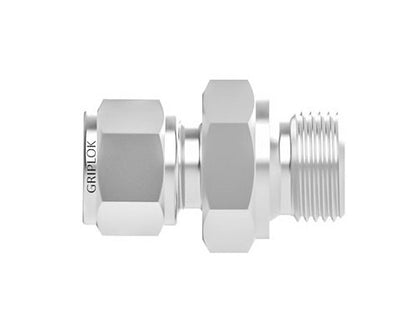

The Griplok BSPP Male Connector features a durable 316 SS construction, ensuring reliable performance. With a 1/4" Tube Fitting connection on one end and a 1/4" Male BSPP on the other, this connector offers a secure and tight fit. Its straight shape and precise dimensions make it ideal for instrumentation applications requiring a leak-free connection. Trust Griplok for quality and precision in your industrial fluid system setups.

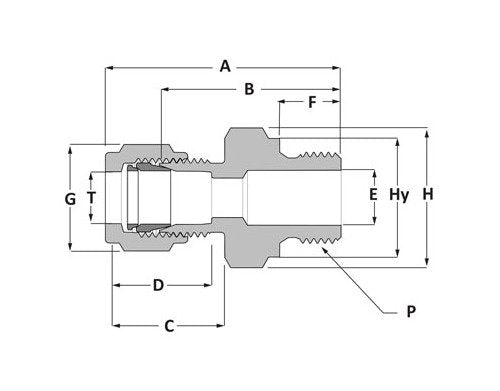

Product Specifications
Dimensions A
1.48 in
Dimensions B Body
1.19 in
Dimensions C
0.70 in
Dimensions D
0.60 in
Dimensions E
0.19 in
Dimensions F
0.44 in
Dimensions G
9/16 in
Dimensions H
3/4 in
Dimensions Hy
0.71 in
Dimensions P
1/4 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male BSPP
Specifications End Connections
TF x Male BSPP
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to BSP Thread Fitting - Griplok
