Griplok BSPT Male Connector - Brass, 1/8in Tube x 1/4in Male BSPT
Griplok BSPT Male Connector - Brass, 1/8in Tube x 1/4in Male BSPT
SKU:FIT-556ec3
Precision Brass BSPT Male Connector for secure tube fittings, 1/8in x 1/4in Male BSPT
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Griplok BSPT Male Connector - Brass, 1/8in Tube x 1/4in Male BSPT
$15.99
Quantity: 1
Claim Your Seller Account
Griplok BSPT Male Connector - Brass, 1/8in Tube x 1/4in Male BSPT
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok BSPT Male Connector features a Brass body with a 1/8-inch Tube Fitting on one end and a 1/4-inch Male BSPT on the other. Designed for precision and durability, this straight connector ensures a secure and leak-free connection. With dimensions crafted for optimum performance, this connector is ideal for instrumentation use, meeting stringent standards for reliability and performance.
Ready to Grow Without Cash Flow Constraints?

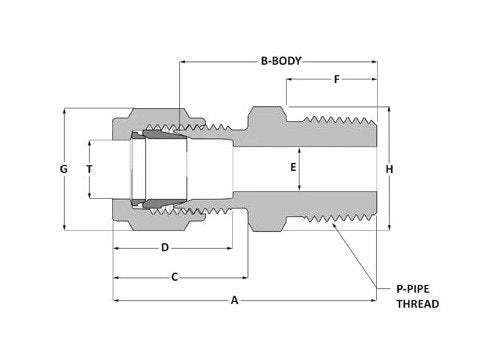

Product Specifications
Dimensions A
1.40 in
Dimensions B Body
1.14 in
Dimensions C
0.60 in
Dimensions D
0.50 in
Dimensions E
0.09 in
Dimensions F
0.56 in
Dimensions G
7/16 in
Dimensions H
9/16 in
Dimensions P
1/4 in
Dimensions T
1/8 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male BSPT
Specifications End Connections
TF x Male BSPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
3
Specifications Shape
Straight
Category 6
Tube Fitting to BSP Thread Fitting - Griplok
