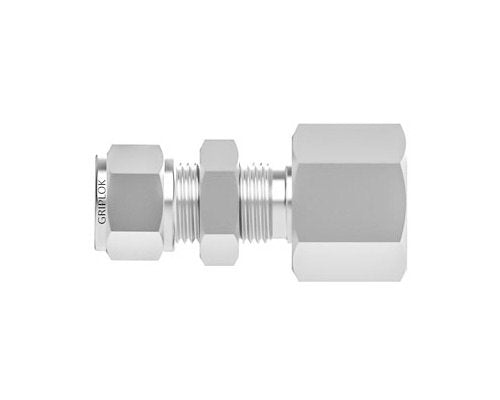

Griplok Bulkhead Female Connector - 1/2 Tube Fitting x 1/2-14 FNPT, Alloy 400
Griplok Bulkhead Female Connector - 1/2 Tube Fitting x 1/2-14 FNPT, Alloy 400
SKU:FIT-c40398
Secure and leak-free Griplok Bulkhead Female Connector for 1/2 in tube fitting and 1/2-14 FNPT, Alloy 400 construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Griplok Bulkhead Female Connector is designed for seamless tube-to-thread connections, featuring a durable Alloy 400 construction. With a 1/2 inch tube fitting and 1/2-14 FNPT connection, this connector ensures a secure and leak-free fit. Its straight shape, bulkhead specialty, and Griplok series branding signify reliability and performance. The dimensions allow for easy installation across various panel thicknesses, meeting the demands of industrial applications while maintaining top-tier quality standards.

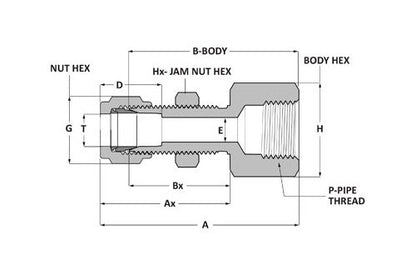

Product Specifications
Dimensions A
2.69 in
Dimensions Ax
1.65 in
Dimensions B
2.22 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions G
7/8 in
Dimensions H
1 1/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/2 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
