Griplok Bulkhead Female Connector - 316 SS, 1/4 in Tube x 1/4-18 FNPT
Griplok Bulkhead Female Connector - 316 SS, 1/4 in Tube x 1/4-18 FNPT
SKU:FIT-297dec
Durable Griplok Bulkhead Connector - 316 SS, 1/4 in Tube x 1/4-18 FNPT. Reliable, Corrosion-Resistant, Straight Shape.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - 316 SS, 1/4 in Tube x 1/4-18 FNPT
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - 316 SS, 1/4 in Tube x 1/4-18 FNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

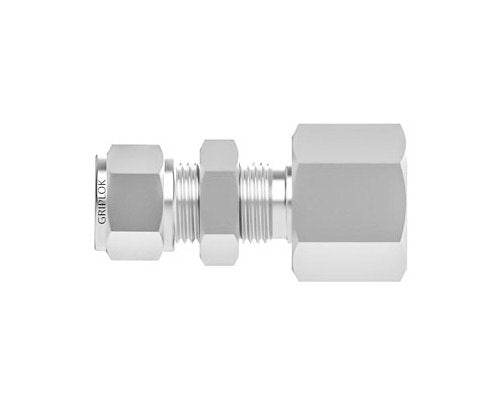

The Griplok Bulkhead Female Connector is crafted from durable 316 SS, ensuring longevity and corrosion resistance. With a 1/4 inch Tube Fitting on one end and a 1/4-18 FNPT on the other, it guarantees a reliable and secure connection. This connector's straight shape and bulkhead specialty make it ideal for demanding applications requiring airtight seals and precision fittings. Compliant with industry standards, this connector exceeds expectations in durability and performance.
Product Specifications

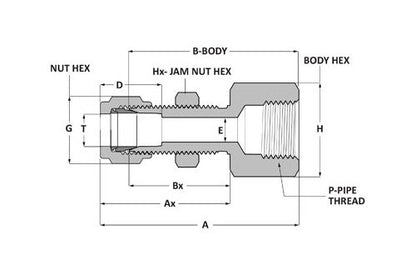

Dimensions A
2.08 in
Dimensions Ax
1.32 in
Dimensions B
1.75 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions G
9/16 in
Dimensions H
3/4 in
Dimensions Hx
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions P
1/4 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
