Griplok Bulkhead Female Connector - 316 SS, 1/4 Tube x 1/8 FNPT
Griplok Bulkhead Female Connector - 316 SS, 1/4 Tube x 1/8 FNPT
SKU:FIT-f5ab83
High-grade 316 SS Bulkhead Female Connector with 1/4 Tube x 1/8 FNPT for secure and leak-free connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - 316 SS, 1/4 Tube x 1/8 FNPT
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - 316 SS, 1/4 Tube x 1/8 FNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

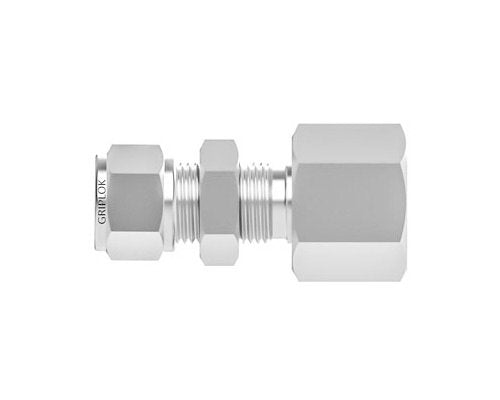

The Griplok Bulkhead Female Connector is expertly crafted from high-grade 316 SS, ensuring durability and corrosion resistance. This connector features a seamless 1/4-inch Tube Fitting on one end and a precise 1/8 FNPT on the other, providing a secure and leak-free connection. Its straight shape, bulkhead specialty, and compact dimensions make it ideal for various fitting applications. With easy installation and reliable performance, this Griplok connector is a must-have for both consumer and institutional users seeking top-notch quality.

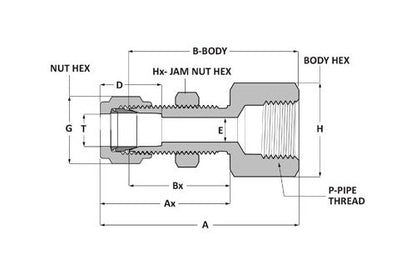

Product Specifications
Dimensions A
1.89 in
Dimensions Ax
1.32 in
Dimensions B
1.56 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Hx
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions P
1/8 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
