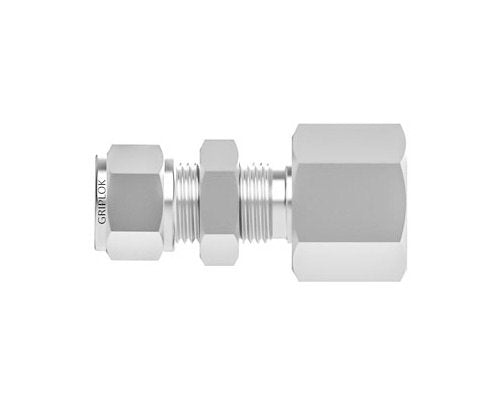

Griplok Bulkhead Female Connector - 316 SS, 1/8 Tube Fitting x 1/8-27 FNPT
Griplok Bulkhead Female Connector - 316 SS, 1/8 Tube Fitting x 1/8-27 FNPT
SKU:FIT-e68f9a
High-quality Griplok Bulkhead Female Connector for secure 1/8 Tube Fitting x 1/8-27 FNPT connections. Durable 316 SS construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - 316 SS, 1/8 Tube Fitting x 1/8-27 FNPT
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - 316 SS, 1/8 Tube Fitting x 1/8-27 FNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Bulkhead Female Connector, made of high-quality 316 SS, ensures secure and leak-free connections. With a 1/8 Tube Fitting x 1/8-27 FNPT configuration, this connector is designed for durability and precision. Its bulkhead design adds stability and ease of installation, perfect for demanding industrial applications. Meeting stringent standards, this connector guarantees reliable performance in diverse operating conditions.

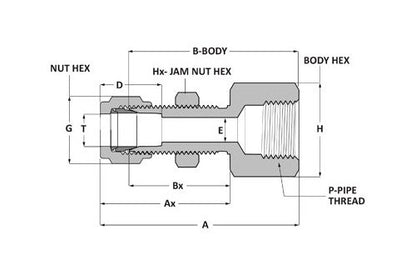

Product Specifications
Dimensions A
1.82 in
Dimensions Ax
1.23 in
Dimensions B
1.50 in
Dimensions Bx
0.97 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions G
7/16 in
Dimensions H
9/16 in
Dimensions Hx
1/2 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/8 in
Dimensions Panel Hole Drill Size
21/64 in
Dimensions T
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
