Griplok Bulkhead Female Connector - Alloy 400, 1/2 TF x 1/2-14 FNPT

Griplok Bulkhead Female Connector - Alloy 400, 1/2 TF x 1/2-14 FNPT

SSP-c40398

Durable Griplok Bulkhead Female Connector in Alloy 400, 1/2 TF x 1/2-14 FNPT. Ideal for secure industrial panel installations.

$34.99
$34.99
Sale

Initiate Order

Griplok Bulkhead Female Connector - Alloy 400, 1/2 TF x 1/2-14 FNPT

Griplok Bulkhead Female Connector - Alloy 400, 1/2 TF x 1/2-14 FNPT

$34.99

Quantity: 1

Claim Your Seller Account

Griplok Bulkhead Female Connector - Alloy 400, 1/2 TF x 1/2-14 FNPT

Griplok Bulkhead Female Connector - Alloy 400, 1/2 TF x 1/2-14 FNPT

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Griplok Bulkhead Female Connector is a high-quality fitting designed for industrial applications. Crafted from Alloy 400, it ensures durability and resistance to harsh environments. With a 1/2 TF x 1/2-14 FNPT configuration, this connector offers a secure and leak-free connection. Its straight shape and bulkhead specialty make it ideal for panel installations. Measuring A: 2.69 in, Bx: 1.25 in, D: 0.97 in, this connector meets strict industry standards, making it a reliable choice for demanding environments.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

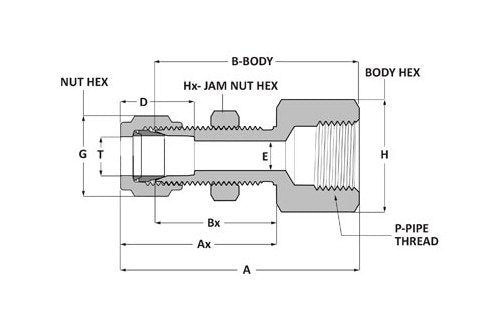

Dimensions A
2.69 in
Dimensions Ax
1.65 in
Dimensions B
2.22 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions G
7/8 in
Dimensions H
1 1/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/2 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
