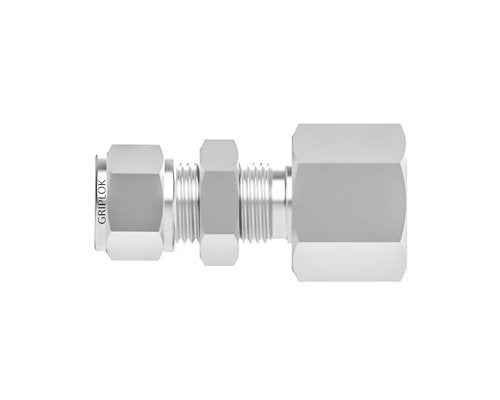

Griplok Bulkhead Female Connector - Alloy 400, 1/4 TF x 1/4 FNPT
Griplok Bulkhead Female Connector - Alloy 400, 1/4 TF x 1/4 FNPT
SKU:FIT-ff26f6
Secure 1/4 TF x 1/4 FNPT connection. Durable Alloy 400 construction. Meets industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - Alloy 400, 1/4 TF x 1/4 FNPT
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - Alloy 400, 1/4 TF x 1/4 FNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

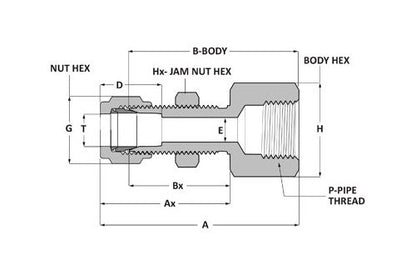

The Griplok Bulkhead Female Connector in Alloy 400 offers a secure connection between 1/4-inch tubing and 1/4-18 FNPT threads. This straight connector with a bulkhead design ensures reliable performance. Its dimensions include A: 2.08 in, Bx: 1.03 in, D: 0.64 in, ensuring compatibility with various setups. Designed for durability and ease of installation, this connector meets stringent industry standards for quality and performance.
Product Specifications
Dimensions A
2.08 in
Dimensions Ax
1.32 in
Dimensions B
1.75 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions G
9/16 in
Dimensions H
3/4 in
Dimensions Hx
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions P
1/4 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
