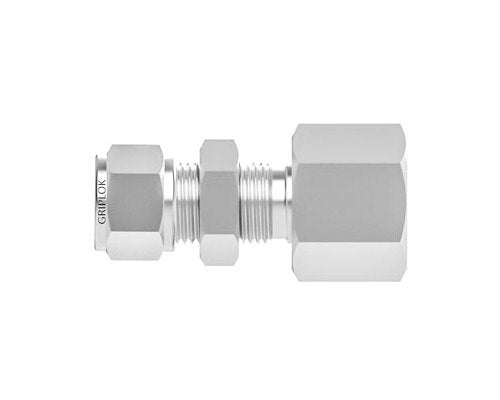

Griplok Bulkhead Female Connector - Alloy 400, 1/8 TF x 1/8-27 FNPT
Griplok Bulkhead Female Connector - Alloy 400, 1/8 TF x 1/8-27 FNPT
SKU:FIT-a0b4cb
Premium Griplok Bulkhead Female Connector - Alloy 400, 1/8 TF x 1/8-27 FNPT, Straight Shape, Bulkhead Design
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - Alloy 400, 1/8 TF x 1/8-27 FNPT
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - Alloy 400, 1/8 TF x 1/8-27 FNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Bulkhead Female Connector is a high-quality fitting designed for precision instrumentation applications. Crafted from durable Alloy 400, it features a 1/8-inch Tube Fitting connecting seamlessly with a 1/8-27 FNPT thread. With a straight shape and Bulkhead design, this connector ensures a secure and reliable connection. Measuring A: 1.82 in, Bx: 0.97 in, D: 0.56 in, this connector is suitable for panel thicknesses up to 0.50 in. Trust the Griplok brand for top-notch quality and performance.

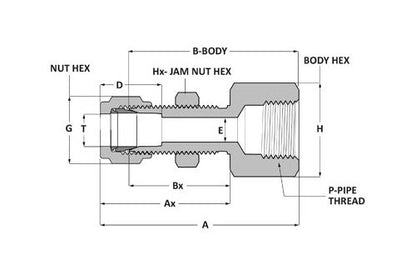

Product Specifications
Dimensions A
1.82 in
Dimensions Ax
1.23 in
Dimensions B
1.50 in
Dimensions Bx
0.97 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions G
7/16 in
Dimensions H
9/16 in
Dimensions Hx
1/2 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/8 in
Dimensions Panel Hole Drill Size
21/64 in
Dimensions T
1/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
