Griplok Bulkhead Female Connector - Alloy 400, TF to FNPT, 1/4in x 1/8in

Name: Griplok Bulkhead Female Connector - Alloy 400, TF to FNPT, 1/4in x 1/8in
Brand: SSP Fittings Corp.
SKU: FIT-a207e7
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-a207e7

High-quality Alloy 400 Griplok Bulkhead Female Connector for 1/4in Tube Fitting to 1/8in FNPT, precise dimensions & reliable connections.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

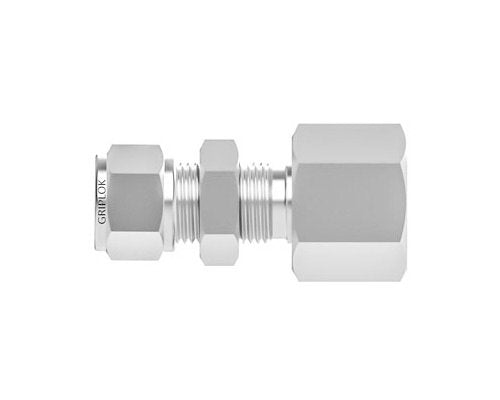

The Griplok Bulkhead Female Connector is a high-quality fitting designed for seamless tube-to-NPT thread connections. Crafted from durable Alloy 400, it ensures long-lasting performance. With precise dimensions and a specialty Bulkhead design, this connector offers a secure and reliable connection. Ideal for instrumentation applications requiring a straight shape. Maximum panel thickness of 0.40 inches and panel hole drill size of 29/64 inches. Trust Griplok for premium quality and precision engineering.

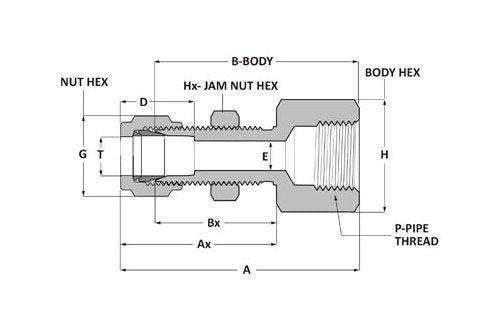

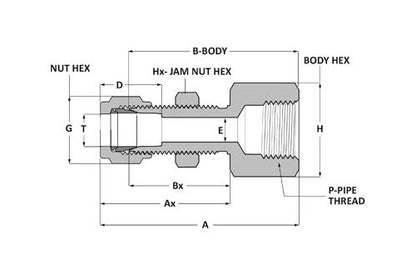

Product Specifications

Dimensions A

1.89 in

Dimensions Ax

1.32 in

Dimensions B

1.56 in

Dimensions Bx

1.03 in

Dimensions D

0.64 in

Dimensions E

0.19 in

Dimensions G

9/16 in

Dimensions H

5/8 in

Dimensions Hx

5/8 in

Dimensions Maximum Panel Thickness

0.40 in

Dimensions P

1/8 in

Dimensions Panel Hole Drill Size

29/64 in

Dimensions T

1/4 in

Specifications Body Material

Alloy 400

Specifications Brand Series

Griplok

Specifications Connection 1 Size

1/4 in

Specifications Connection 1 Type

Tube Fitting

Specifications Connection 2 Size

1/8 in

Specifications Connection 2 Type

FNPT

Specifications End Connections

TF x FNPT

Specifications Handle Color

Specifications Handle Type

Specifications Production Category

Specifications Shape

Straight

Specifications Specialty

Bulkhead

Category 6

Tube Fitting to NPT Thread Fitting - Griplok

Griplok Bulkhead Female Connector - Alloy 400, TF to FNPT, 1/4in x 1/8in
