Griplok Bulkhead Female Connector - Alloy C-276, 1/2 TF x 1/2-14 FNPT
Griplok Bulkhead Female Connector - Alloy C-276, 1/2 TF x 1/2-14 FNPT
SKU:FIT-b0f5f4
Durable Alloy C-276 Bulkhead Female Connector, 1/2 TF x 1/2-14 FNPT - Ideal for industrial applications.
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - Alloy C-276, 1/2 TF x 1/2-14 FNPT
$64.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - Alloy C-276, 1/2 TF x 1/2-14 FNPT
$64.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

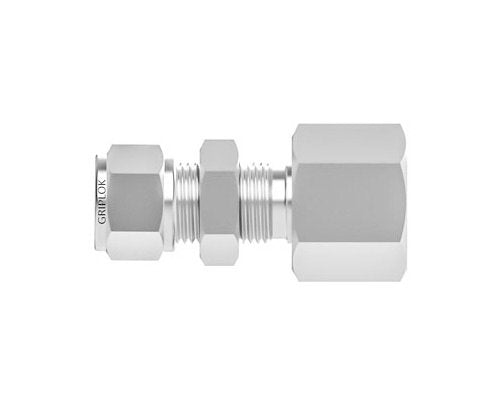

The Griplok Bulkhead Female Connector is a premium fitting made of Alloy C-276, ensuring exceptional durability and corrosion resistance. With a 1/2-inch TF x 1/2-14 FNPT configuration, this connector guarantees a secure and precise connection. Its straight shape and bulkhead design make it ideal for demanding industrial applications. Meeting stringent standards, this connector promises reliability and longevity in fluid systems.

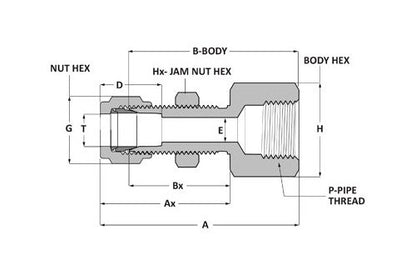

Product Specifications
Dimensions A
2.69 in
Dimensions Ax
1.65 in
Dimensions B
2.22 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions G
7/8 in
Dimensions H
1 1/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/2 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Alloy C-276
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
