Griplok Bulkhead Female Connector - Brass, 1/2 Tube Fitting x 1/2-14 FNPT
Griplok Bulkhead Female Connector - Brass, 1/2 Tube Fitting x 1/2-14 FNPT
SKU:FIT-07f770
High-quality Griplok Bulkhead Female Connector for seamless tube-to-thread connections. Reliable brass construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - Brass, 1/2 Tube Fitting x 1/2-14 FNPT
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - Brass, 1/2 Tube Fitting x 1/2-14 FNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

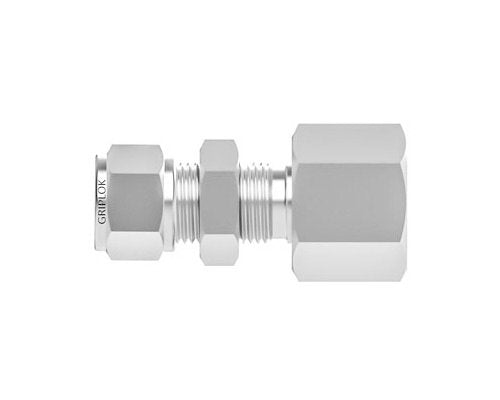

The Griplok Bulkhead Female Connector is a premium brass fitting designed for reliability and durability. With a 1/2-inch Tube Fitting connecting to a 1/2-14 FNPT, this straight connector ensures a secure attachment. Featuring precise dimensions and a specialty Bulkhead design, it is ideal for industrial applications. The Griplok series guarantees a tight seal, meeting stringent industry standards for instrumentation tube fittings.

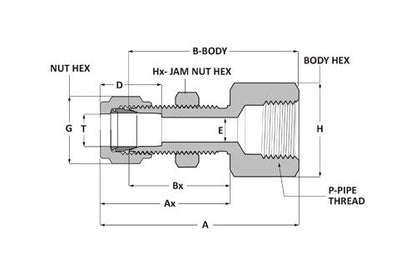

Product Specifications
Dimensions A
2.69 in
Dimensions Ax
1.65 in
Dimensions B
2.22 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions G
7/8 in
Dimensions H
1 1/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/2 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
