Griplok Bulkhead Female Connector - Brass, 1/2 Tube x 3/8 FNPT
Griplok Bulkhead Female Connector - Brass, 1/2 Tube x 3/8 FNPT
SKU:FIT-3cd74f
Premium Griplok Bulkhead Female Connector for secure 1/2 Tube x 3/8 FNPT connections. Brass construction, reliable and durable.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - Brass, 1/2 Tube x 3/8 FNPT
$34.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - Brass, 1/2 Tube x 3/8 FNPT
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Bulkhead Female Connector in brass is a top-tier instrumentation tube fitting, seamlessly joining 1/2-inch tube fittings to 3/8 FNPT threads. Crafted for durability, it features a straight shape with a specialty bulkhead design. With precise dimensions for easy installation, this connector ensures secure and reliable connections. Ideal for demanding applications, it meets stringent industry standards for quality and performance.

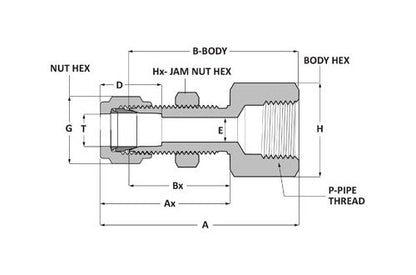

Product Specifications
Dimensions A
2.50 in
Dimensions Ax
1.65 in
Dimensions B
2.03 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
3/8 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
