Griplok Bulkhead Female Connector - Brass, 1/4 TF x 1/4-18 FNPT
Griplok Bulkhead Female Connector - Brass, 1/4 TF x 1/4-18 FNPT
SKU:FIT-91447e
High-quality Griplok Bulkhead Female Connector in brass with 1/4 TF x 1/4-18 FNPT. Ideal for industrial fluid systems.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - Brass, 1/4 TF x 1/4-18 FNPT
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - Brass, 1/4 TF x 1/4-18 FNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

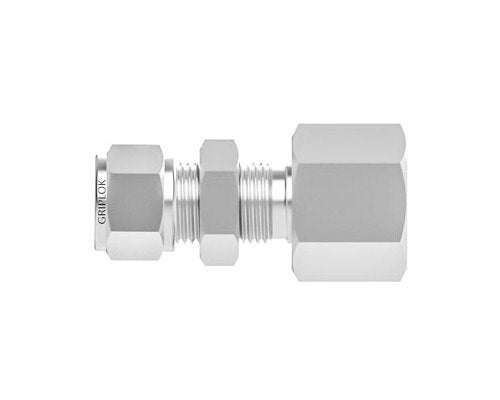

Upgrade your industrial fluid systems with the Griplok Bulkhead Female Connector. Made of durable brass, this connector features a 1/4-inch Tube Fitting connected to a 1/4-18 FNPT thread, ensuring a secure and precise fit. The straight design with Bulkhead specialty enhances stability. With dimensions meeting industry standards and a maximum panel thickness of 0.40 inches, this Griplok connector is ideal for demanding applications.

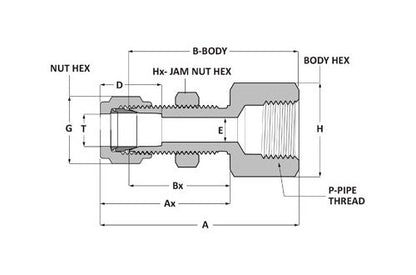

Product Specifications
Dimensions A
2.08 in
Dimensions Ax
1.32 in
Dimensions B
1.75 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions G
9/16 in
Dimensions H
3/4 in
Dimensions Hx
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions P
1/4 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
