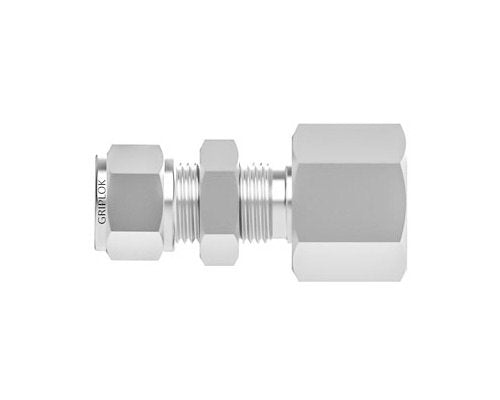

Griplok Bulkhead Female Connector - Brass, 1/8 Tube x 1/8-27 FNPT
Griplok Bulkhead Female Connector - Brass, 1/8 Tube x 1/8-27 FNPT
SKU:FIT-1fec4b
Precision-engineered Griplok Bulkhead Female Connector in Brass for secure 1/8 Tube x 1/8-27 FNPT connections. Ideal for industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - Brass, 1/8 Tube x 1/8-27 FNPT
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - Brass, 1/8 Tube x 1/8-27 FNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Bulkhead Female Connector in Brass features a 1/8 inch Tube Fitting connected to a 1/8-27 FNPT, ensuring a secure and reliable link in instrument applications. With dimensions A: 1.82 in, B: 1.50 in, and maximum Panel Thickness of 0.50 in, this connector is designed for durability and precision. Meeting stringent industry standards, this connector is a dependable choice for diverse industrial settings.

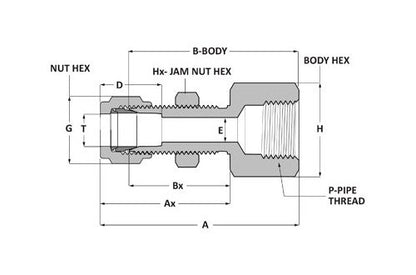

Product Specifications
Dimensions A
1.82 in
Dimensions Ax
1.23 in
Dimensions B
1.50 in
Dimensions Bx
0.97 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions G
7/16 in
Dimensions H
9/16 in
Dimensions Hx
1/2 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/8 in
Dimensions Panel Hole Drill Size
21/64 in
Dimensions T
1/8 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
