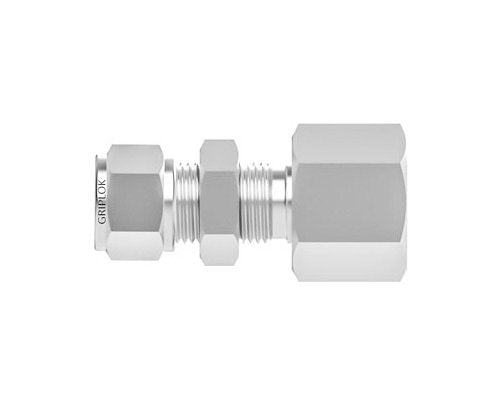

Griplok Bulkhead Female Connector - Brass, 3/8 Tube x 1/4-18 FNPT

Name: Griplok Bulkhead Female Connector - Brass, 3/8 Tube x 1/4-18 FNPT
Brand: SSP Fittings Corp.
SKU: FIT-c53ded
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-c53ded

Premium brass bulkhead connector for 3/8 Tube x 1/4-18 FNPT, ensuring secure and leak-free connections in instrumentation applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Griplok Bulkhead Female Connector is a premium brass fitting designed for superior performance in instrumentation tubing applications. Featuring a straight shape with a specialty bulkhead design, this connector ensures secure and leak-free connections. With a 3/8 inch Tube Fitting and 1/4-18 FNPT connection sizes, it offers precise compatibility. The Griplok series guarantees reliability and durability, meeting the highest industry standards for quality and performance. Ideal for industrial and institutional use.

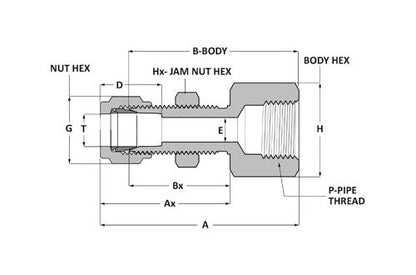

Product Specifications

Dimensions A

2.22 in

Dimensions Ax

1.45 in

Dimensions B

1.88 in

Dimensions Bx

1.16 in

Dimensions D

0.71 in

Dimensions E

0.28 in

Dimensions G

11/16 in

Dimensions H

3/4 in

Dimensions Hx

3/4 in

Dimensions Maximum Panel Thickness

0.44 in

Dimensions P

1/4 in

Dimensions Panel Hole Drill Size

37/64 in

Dimensions T

3/8 in

Specifications Body Material

Brass

Specifications Brand Series

Griplok

Specifications Connection 1 Size

3/8 in

Specifications Connection 1 Type

Tube Fitting

Specifications Connection 2 Size

1/4 in

Specifications Connection 2 Type

FNPT

Specifications End Connections

TF x FNPT

Specifications Handle Color

Specifications Handle Type

Specifications Production Category

Specifications Shape

Straight

Specifications Specialty

Bulkhead
