Griplok Bulkhead Female Connector - C-276 Alloy, 1/2-Inch Tube x 3/8-Inch FNPT
Griplok Bulkhead Female Connector - C-276 Alloy, 1/2-Inch Tube x 3/8-Inch FNPT
SKU:FIT-2ecc73
Secure Griplok Bulkhead Female Connector in C-276 Alloy for leak-free, industrial-grade tubing connections.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - C-276 Alloy, 1/2-Inch Tube x 3/8-Inch FNPT
$59.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - C-276 Alloy, 1/2-Inch Tube x 3/8-Inch FNPT
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

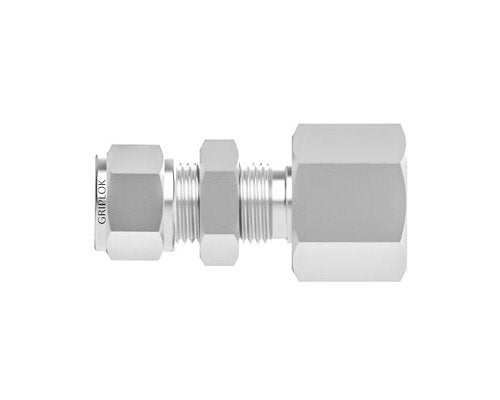

The Griplok Bulkhead Female Connector in C-276 Alloy features a secure and precise 1/2-inch Tube Fitting to 3/8-inch FNPT connection. This straight-shaped, bulkhead specialty fitting ensures reliable performance with its durable construction. Designed for ease of installation, it meets stringent standards for instrument fittings, making it ideal for industrial applications requiring leak-free connections.

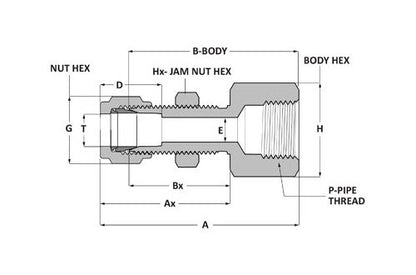

Product Specifications
Dimensions A
2.50 in
Dimensions Ax
1.65 in
Dimensions B
2.03 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
3/8 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Alloy C-276
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
