Griplok Bulkhead Female Connector - Tube Fitting to FNPT, Alloy 400, 3/8'' x 1/4''-18
Griplok Bulkhead Female Connector - Tube Fitting to FNPT, Alloy 400, 3/8'' x 1/4''-18
SKU:FIT-1441d6
Secure and durable Griplok Bulkhead Female Connector for demanding applications, Alloy 400 construction, 3/8'' Tube Fitting x 1/4-18 FNPT.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Bulkhead Female Connector - Tube Fitting to FNPT, Alloy 400, 3/8'' x 1/4''-18
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Female Connector - Tube Fitting to FNPT, Alloy 400, 3/8'' x 1/4''-18
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

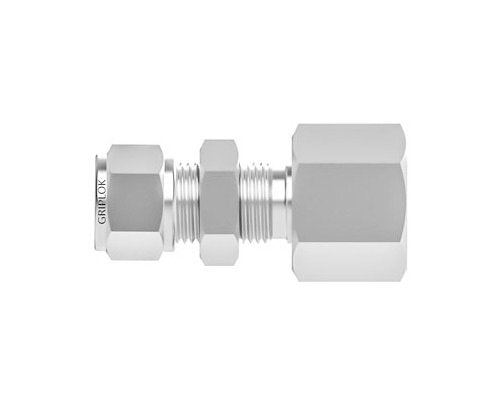

The Griplok Bulkhead Female Connector is expertly designed for seamless connections in demanding applications. Crafted from Alloy 400 for durability, this connector features a 3/8-inch Tube Fitting on one end and a 1/4-18 FNPT on the other. Its straight shape and Bulkhead specialty ensure secure and reliable performance. With precise dimensions and a maximum panel thickness of 0.44 inches, this connector meets stringent quality standards. Trust Griplok for precision engineering and unmatched quality.
Product Specifications

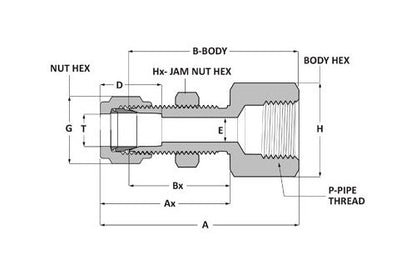

Dimensions A
2.22 in
Dimensions Ax
1.45 in
Dimensions B
1.88 in
Dimensions Bx
1.16 in
Dimensions D
0.71 in
Dimensions E
0.28 in
Dimensions G
11/16 in
Dimensions H
3/4 in
Dimensions Hx
3/4 in
Dimensions Maximum Panel Thickness
0.44 in
Dimensions P
1/4 in
Dimensions Panel Hole Drill Size
37/64 in
Dimensions T
3/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
