Griplok Bulkhead Male Connector - 1/2 Tube x 1/2-14 MNPT
Griplok Bulkhead Male Connector - 1/2 Tube x 1/2-14 MNPT
SKU:SSP-9c6fe6
Reliable Griplok Bulkhead Male Connector for secure 1/2-in tube connections. Alloy 400 construction ensures durability and precision. Ideal for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Bulkhead Male Connector - 1/2 Tube x 1/2-14 MNPT
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Male Connector - 1/2 Tube x 1/2-14 MNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

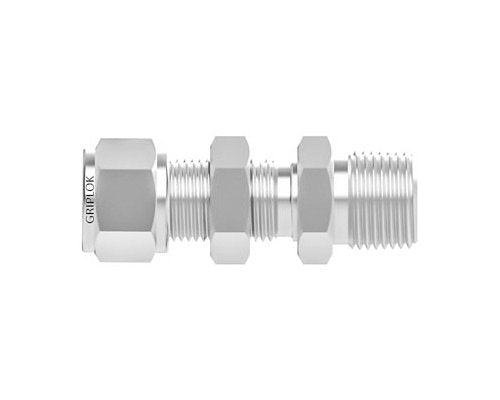

The Griplok Bulkhead Male Connector is designed for precision and reliability in industrial settings. Constructed with Alloy 400 material, this fitting ensures durability and corrosion resistance. With a straight shape and 1/2-inch tube and MNPT connections, it offers secure and leak-free installations. The Griplok series guarantees a tight seal and easy handling, meeting the highest standards for instrumentation tube fittings. Its bulkhead specialty and robust design make it ideal for demanding applications.
Product Specifications

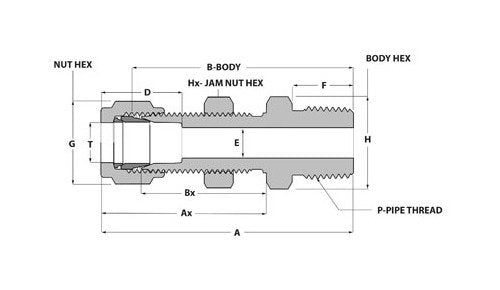

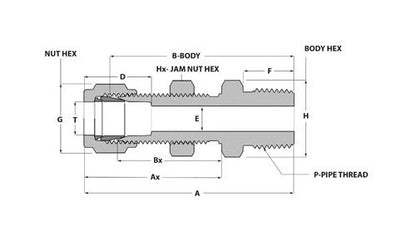

Dimensions A
2.78 in
Dimensions Ax
1.65 in
Dimensions B
2.31 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions F
0.75 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/2 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
