Griplok Bulkhead Male Connector - 316 SS, 1/2 in TF x 3/8 in MNPT
Griplok Bulkhead Male Connector - 316 SS, 1/2 in TF x 3/8 in MNPT
SKU:SSP-9179de
Premium Griplok Bulkhead Male Connector, 316 SS construction, 1/2 in x 3/8 in, leak-free connections.
Regular price
$37.41
Regular price
Sale price
$37.41
Unit price
per
Initiate Order
Griplok Bulkhead Male Connector - 316 SS, 1/2 in TF x 3/8 in MNPT
$37.41
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Male Connector - 316 SS, 1/2 in TF x 3/8 in MNPT
$37.41
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

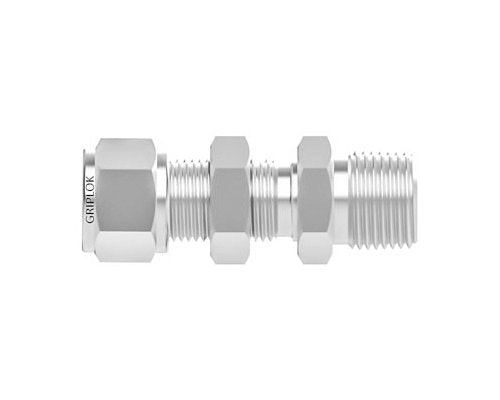

The Griplok Bulkhead Male Connector is precision-engineered with 316 SS material, ensuring durability and corrosion resistance. This connector features a 1/2-inch Tube Fitting on one end and a 3/8-18 MNPT on the other, offering a secure and leak-free connection ideal for industrial applications. With its straight shape and bulkhead design, it provides stability and ease of installation, meeting stringent institutional procurement standards.
Ready to Grow Without Cash Flow Constraints?

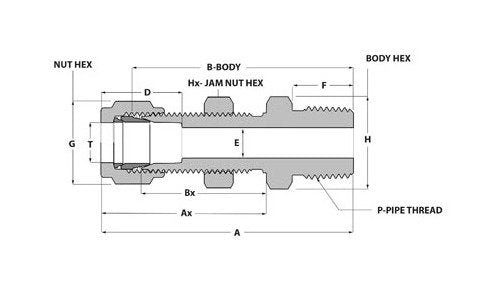

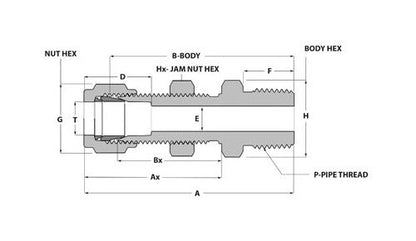

Product Specifications
Dimensions A
2.56 in
Dimensions Ax
1.65 in
Dimensions B
2.09 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.37 in
Dimensions F
0.56 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
3/8 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
37.41 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
