Griplok Bulkhead Male Connector - Alloy 400, 3/8 in Tube Fitting x 1/4 in MNPT
Griplok Bulkhead Male Connector - Alloy 400, 3/8 in Tube Fitting x 1/4 in MNPT
SKU:FIT-b73513
High-quality Griplok Bulkhead Male Connector for precise Tube Fitting to NPT Thread connections. Alloy 400 construction, 3/8 in Tube Fitting x 1/4-18 MNPT.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Bulkhead Male Connector - Alloy 400, 3/8 in Tube Fitting x 1/4 in MNPT
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Male Connector - Alloy 400, 3/8 in Tube Fitting x 1/4 in MNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

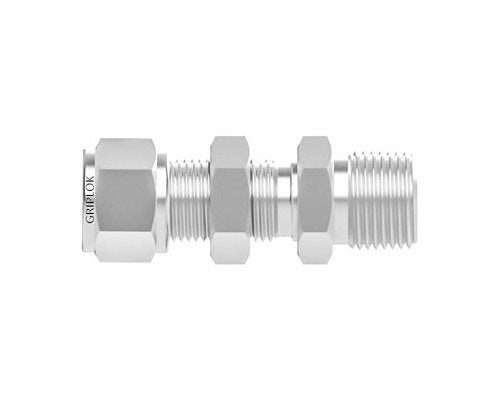

The Griplok Bulkhead Male Connector is a premium fitting designed for seamless Tube Fitting to NPT Thread connections. Crafted from durable Alloy 400, this connector ensures reliable performance. With a 3/8-inch Tube Fitting and 1/4-inch MNPT, it offers a secure and tight fit, making it ideal for industrial applications where precision is paramount. Its straight shape, bulkhead design, and Griplok brand series guarantee top-notch quality and ease of installation.
Product Specifications

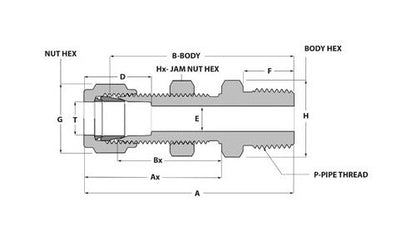

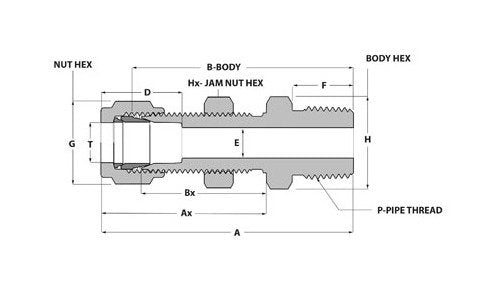

Dimensions A
2.31 in
Dimensions Ax
1.45 in
Dimensions B
1.97 in
Dimensions Bx
1.16 in
Dimensions D
0.71 in
Dimensions E
0.28 in
Dimensions F
0.56 in
Dimensions G
11/16 in
Dimensions H
3/4 in
Dimensions Hx
3/4 in
Dimensions Maximum Panel Thickness
0.44 in
Dimensions P
1/4 in
Dimensions Panel Hole Drill Size
37/64 in
Dimensions T
3/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
