Griplok Bulkhead Male Connector - Alloy C-276, 1/2 Tube x 3/8-18 MNPT
Griplok Bulkhead Male Connector - Alloy C-276, 1/2 Tube x 3/8-18 MNPT
SKU:SSP-eb156a
Premium Griplok Bulkhead Male Connector - Alloy C-276, 1/2 Tube x 3/8-18 MNPT, ideal for secure industrial connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Bulkhead Male Connector - Alloy C-276, 1/2 Tube x 3/8-18 MNPT
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Male Connector - Alloy C-276, 1/2 Tube x 3/8-18 MNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

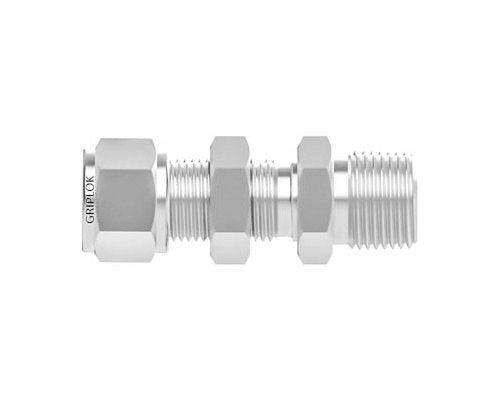

The Griplok Bulkhead Male Connector in Alloy C-276 features a tube fitting size of 1/2 inch and MNPT size of 3/8 inch. Constructed with precision, this Straight Connector is ideal for industrial applications requiring secure and leak-free connections. Its Bulkhead design ensures reliability and durability, meeting strict industry standards.

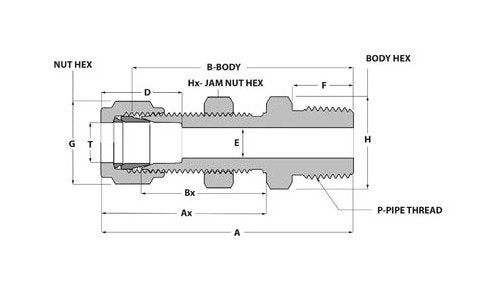

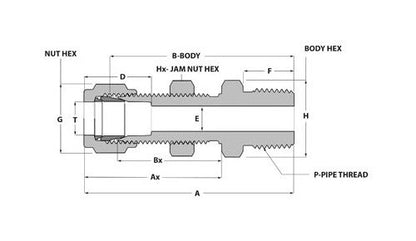

Product Specifications
Dimensions A
2.56 in
Dimensions Ax
1.65 in
Dimensions B
2.09 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.37 in
Dimensions F
0.56 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
3/8 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Alloy C-276
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
