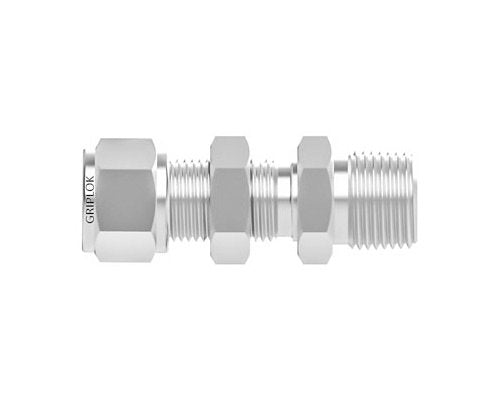

Griplok Bulkhead Male Connector - Brass 1/4" Tube Fitting x 1/4-18 MNPT
Griplok Bulkhead Male Connector - Brass 1/4" Tube Fitting x 1/4-18 MNPT
SKU:FIT-6e41b5
Premium Griplok Bulkhead Male Connector for 1/4" Tube Fitting x 1/4-18 MNPT, crafted from durable brass.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Griplok Bulkhead Male Connector - Brass 1/4" Tube Fitting x 1/4-18 MNPT
$15.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Male Connector - Brass 1/4" Tube Fitting x 1/4-18 MNPT
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with the Griplok Bulkhead Male Connector. Made of durable brass, this connector ensures a secure connection between a 1/4" tube fitting and 1/4-18 MNPT thread fitting. With precise dimensions and a straight shape, it's ideal for bulkhead applications. Experience top-notch quality and reliability with this Griplok connector.

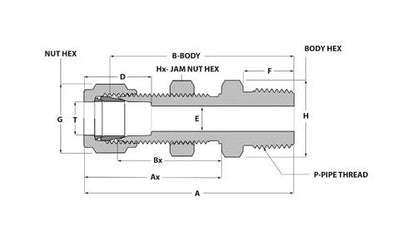

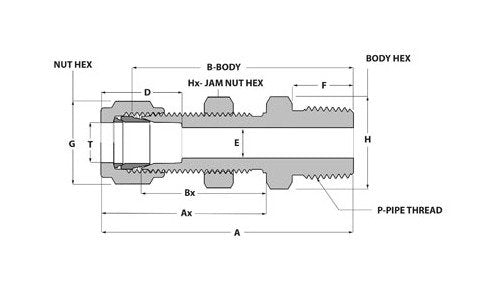

Product Specifications
Dimensions A
2.14 in
Dimensions Ax
1.32 in
Dimensions B
1.81 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F
0.56 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Hx
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions P
1/4 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
