Griplok Bulkhead Tube Stub Adapter
Griplok Bulkhead Tube Stub Adapter
SKU:FIT-685a3a
Premium Alloy 400 Griplok Tube Stub Adapter - 1/4 inch TF x 1/4 inch Tube Stub, ideal for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Griplok Bulkhead Tube Stub Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Tube Stub Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

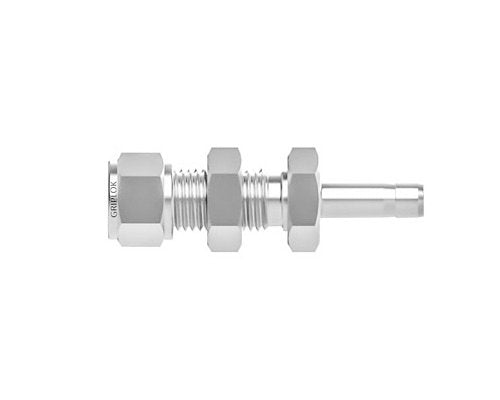

The Griplok Bulkhead Tube Stub Adapter is a high-quality fitting designed for industrial applications. Made of Alloy 400, this adapter features a 1/4 inch Tube Fitting connection to a 1/4 inch Tube Stub, ensuring a secure and leak-free seal. With a straight shape and Bulkhead specialty, it is suitable for various instrumentation tube fitting needs. The dimensions, including maximum panel thickness and panel hole drill size, make it versatile for different installation requirements.

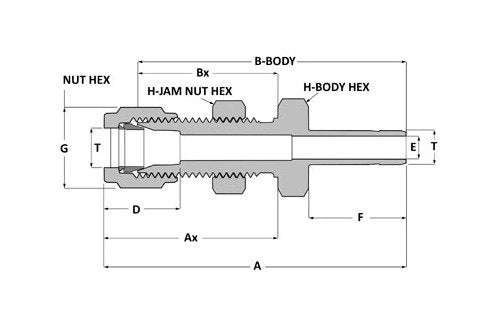

Product Specifications
Dimensions A
2.24 in
Dimensions Ax
1.32 in
Dimensions B
1.91 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.11 in
Dimensions F
0.62 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TF x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting Adapters - Griplok
