Griplok Bulkhead Tube Stub Adapter
Griplok Bulkhead Tube Stub Adapter
SKU:SSP-ed690f
High-quality brass Griplok Tube Stub Adapter for secure bulkhead connections. 1/8 Tube Fitting x 1/8 Tube Stub. Ideal for instrumentation tube fittings.
Regular price
$16.63
Regular price
Sale price
$16.63
Unit price
per
Initiate Order
Griplok Bulkhead Tube Stub Adapter
$16.63
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Tube Stub Adapter
$16.63
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok Bulkhead Tube Stub Adapter is a high-quality brass fitting designed for precise instrumentation tube connections. This straight adapter features a 1/8 tube fitting on one end and a 1/8 tube stub on the other end, ensuring a secure and leak-free connection. With dimensions meeting industry standards and a maximum panel thickness of 0.50 inches, this adapter is ideal for various industrial applications requiring reliable bulkhead connections.
Ready to Grow Without Cash Flow Constraints?

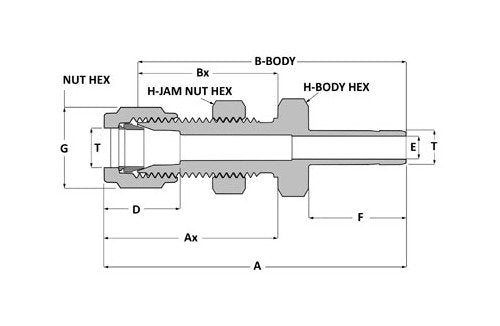

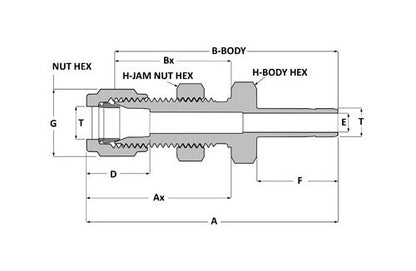

Product Specifications
Dimensions A
2.01 in
Dimensions Ax
1.23 in
Dimensions B
1.69 in
Dimensions Bx
0.97 in
Dimensions D
0.56 in
Dimensions E
0.06 in
Dimensions F
0.53 in
Dimensions G
7/16 in
Dimensions H
1/2 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions Panel Hole Drill Size
21/64 in
Dimensions T
1/8 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TF x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
16.63 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
