Griplok Bulkhead Tube Stub Adapter - 3/8 in, 316 SS
Griplok Bulkhead Tube Stub Adapter - 3/8 in, 316 SS
SKU:FIT-2f6c13
High-quality Griplok Bulkhead Tube Stub Adapter - 3/8 in, 316 SS for secure tube connections in instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Griplok Bulkhead Tube Stub Adapter - 3/8 in, 316 SS
$24.99
Quantity: 1
Claim Your Seller Account
Griplok Bulkhead Tube Stub Adapter - 3/8 in, 316 SS
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

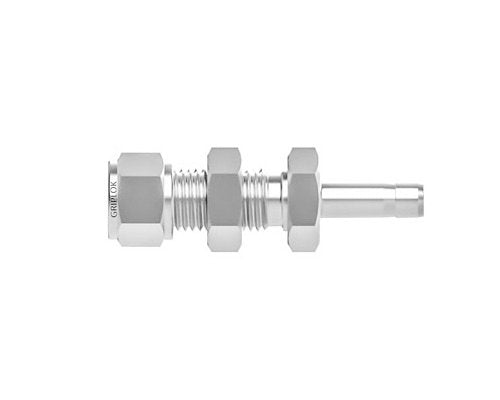

The Griplok Bulkhead Tube Stub Adapter is designed for secure and reliable tube connections. Made from high-quality 316 SS, this straight adapter features a 3/8 in Tube Fitting x 3/8 in Tube Stub configuration, ideal for instrumentation applications. With precise dimensions and a bulkhead specialty, it ensures a tight seal while allowing easy installation on panels up to 0.44 in thickness. Trust in the Griplok brand for exceptional performance and durability.
Product Specifications

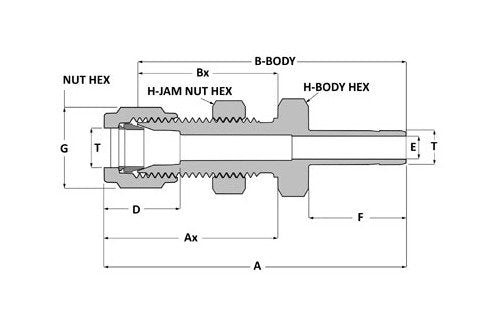

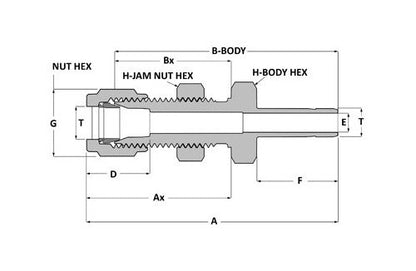

Dimensions A
2.46 in
Dimensions Ax
1.45 in
Dimensions B
2.12 in
Dimensions Bx
1.16 in
Dimensions D
0.71 in
Dimensions E
0.24 in
Dimensions F
0.69 in
Dimensions G
11/16 in
Dimensions H
3/4 in
Dimensions Maximum Panel Thickness
0.44 in
Dimensions Panel Hole Drill Size
37/64 in
Dimensions T
3/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TF x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting Adapters - Griplok
